SKF

SKF 55X90X8 HMSA10 V radial shaft seal with rubber outer diameter and single sealing lip, for oil or grease

Recommended Retail Price €28.47
14.20 tax incl.
€11.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/05/2026
each

  • Delivery by DHL

Product description

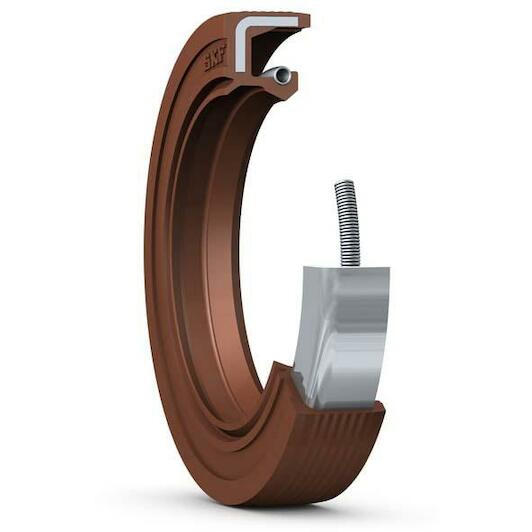

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodate misalignment
Key features according to our expert
  • Inner diameter: 55 mm
  • Width: 8 mm
  • Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
  • With dust lip: Yes
  • Version (radial oil seal according to DIN 3760): AS
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316574870820
  • Supplier number: SKF 55X90X8 HMSA10 V
Inner diameter
55 mm
Width
8 mm
Material
FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip
Yes
Version (radial oil seal according to din 3760)
AS
Outer diameter
90 mm
Auxiliary lip
Yes
Minimum operating temperature
-25
Rotational speed
9120
Type of outside diameter
Rubber metal reinforced
Unit system
Metric
Seal width
8
Maximum operating temperature
200
Housing bore diameter
90
Limiting speed
9120
Design
HMSA10
Sealing lip material
Fluoro rubber (FKM)
Shaft diameter
55
Permissible circumferential speed
26.26
