SKF 47382 radial shaft seal with metal housing, Wave lip and additional trailing lip, for oil or grease

Recommended Retail Price €162.51

81.40 tax incl.

€67.27 excl. VAT (incl. all environmental contributions)

SKF 47382 radial shaft seal with metal housing, Wave lip and additional trailing lip, for oil or grease

€81.40 Recommended Retail Price €162.51

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

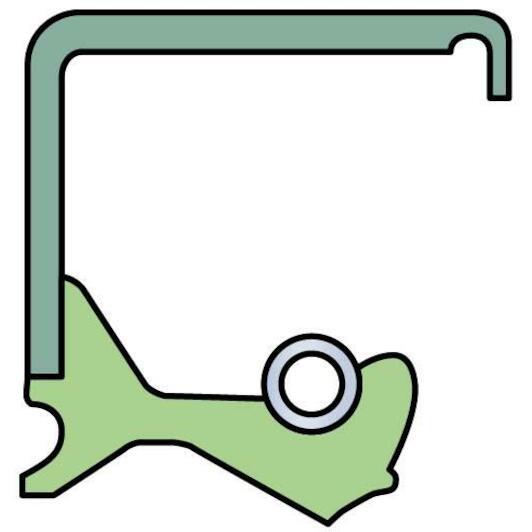

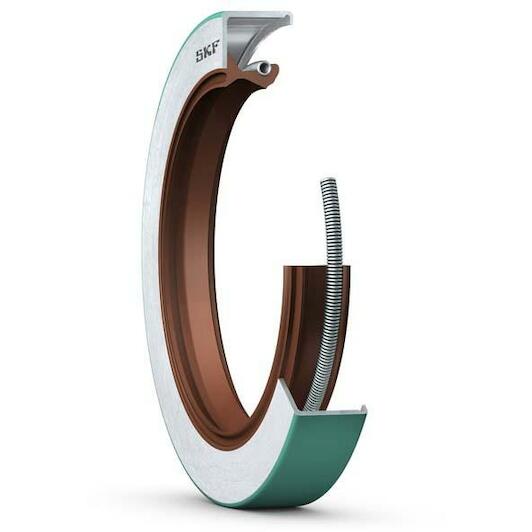

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWA1 seals are designed with a metal case, an SKF WAVE lip made of elastomer with higher pumping rate to reduce heat generation, a garter spring to optimize sealing against the shaft, and a dust lip to improve contamination exclusion. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point

Key features according to our expert

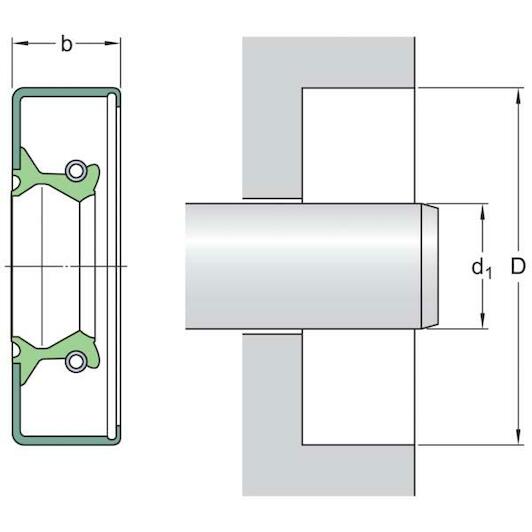

Inner diameter: 120,65 mm
Width: 12,7 mm
Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip: Yes
Version (radial oil seal according to DIN 3760): BS
Outer diameter: 146,08 mm

Specifications / All features

Brand: SKF
08125465
EAN: 00085311036603
Supplier number: SKF 47382

Inner diameter: 120,65 mm
Width: 12,7 mm
Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip: Yes
Version (radial oil seal according to din 3760): BS
Outer diameter: 146,08 mm
Auxiliary lip: Yes
Minimum operating temperature: -25
Rotational speed: 5580
Type of outside diameter: Metal-cased with sealant coating on the outside diameter
Unit system: Inch
Seal width: 12.7
Maximum operating temperature: 200
Housing bore diameter: 146.08
Limiting speed: 5580
Design: CRWA1
Sealing lip material: Fluoro rubber (FKM)
Shaft diameter: 120.65
Permissible circumferential speed: 35.07
