What are the dimensions of this SKF ball bearing?

The bearing has a 15 mm bore, a 35 mm outside diameter, and a width of 14 mm.

Is this bearing sealed?

No, this is an open bearing without seals.

What radial internal clearance does this bearing have?

It features standard normal radial internal clearance (CN).

What material is the cage made from?

The cage is made of engineered polymer (plastic).

What types of load can this double-row deep groove ball bearing carry?

It accommodates radial and axial loads in both directions with higher load capacity than a single-row bearing.

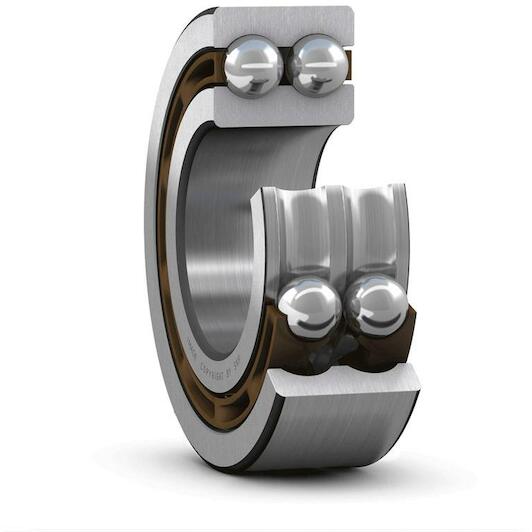

SKF 4202 ATN9 double-row groove ball bearing cylindrical 15x35x14 mm

Supplier number: SKF 4202 ATN9 | EAN 7316577004390

Recommended Retail Price €67.52

33.40 tax incl.

€27.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

High combined load capacity: The double-row design allows you to support heavy radial and axial loads in both directions simultaneously.
Efficient high-speed operation: A durable polymer cage minimizes friction so you achieve smooth and reliable rotation at high speeds.
Accurate cylindrical mounting: Designed with a 15 mm cylindrical bore, you achieve precise and straightforward installation onto your shaft.

In a nutshell

The right choise for

With the Skf 4202 ATN9 double-row deep groove ball bearing, you easily support heavy combined radial and axial loads in both directions. Thanks to its dual-row design, this steel bearing delivers a higher load carrying capacity than single-row alternatives, making it ideal for compact machinery, electric motors, pumps, and gearboxes. The low-friction polymer cage ensures smooth, quiet rotation at high operating speeds while minimizing component wear. Featuring a standard 15 mm cylindrical bore and dimensions of 15X35X14 mm, it installs accurately and securely onto your shaft. Choose this open bearing with normal radial clearance (CN) for dependable, long-lasting performance in enclosed or clean industrial assemblies.

Product information FAQ

€33.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm

Product description

Double row deep groove ball bearings correspond, in their design and operation, to a pair of single row deep groove ball bearings. They are robust in operation, requiring little maintenance, can operate at high speeds and accommodate radial and axial loads in both directions. They are slightly wider than single row bearings of the same bore and outside diameter but have a considerably higher load carrying capacity.

Versatile and robust design
High-speed capability
Accommodate high axial and radial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 7.5
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 32000
Lubricant: None
Cage: Non-metallic
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 17000
Bore diameter: 15
Basic dynamic load rating: 11.9
Outer diameter: 35

Brand SKF
01020003
EAN 7316577004390
Supplier number SKF 4202 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has a 15 mm bore, a 35 mm outside diameter, and a width of 14 mm.
Is this bearing sealed?: No, this is an open bearing without seals.
What radial internal clearance does this bearing have?: It features standard normal radial internal clearance (CN).
What material is the cage made from?: The cage is made of engineered polymer (plastic).
What types of load can this double-row deep groove ball bearing carry?: It accommodates radial and axial loads in both directions with higher load capacity than a single-row bearing.
