SKF

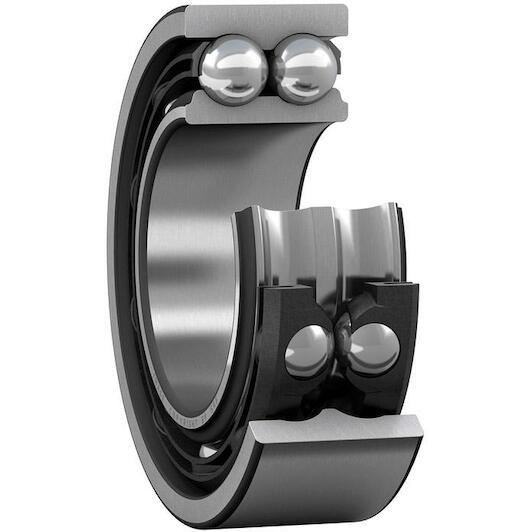

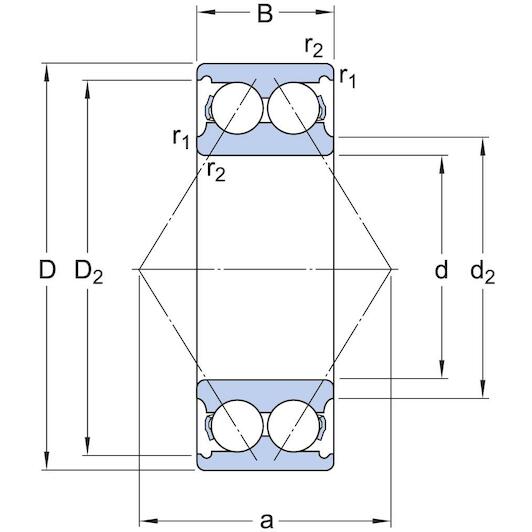

SKF 3322 A/C3 double-row angular contact ball bearing 110 x 240 x 92.1 mm with contact angle 30°

This article is not available

Product description:

  • Angular contact ball bearings have raceways in the inner and outer rings that are offset relative to each other in the direction of the centre line of the bearing
  • This means that they are particularly suitable for combined loads, i.e. equally occurring radial and axial loads
  • The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases
  • The contact angle is defined as the angle between the line connecting the contact points of the ball and the raceways in the radial plain (along which the load is transferred from one raceway to the other) and the line perpendicular to the centreline of the bearing
  • Angular contact ball bearings are produced in a wide range of designs and sizes
Key features according to our expert
  • Inner diameter: 110 mm
  • Outer diameter: 240 mm
  • Width: 92,1 mm
  • Material (bearing seal): Not applicable
Specifications / All features
  • Brand: SKF
  • EAN: 7316570577525
  • Supplier number: SKF 3322 A/C3
Inner diameter
110 mm
Outer diameter
240 mm
Width
92,1 mm
Material (bearing seal)
Not applicable
