What are the dimensions of this tapered roller bearing?

The bore diameter is 40 mm, the outer diameter is 75 mm, and the total width is 26 mm.

What loads can this bearing accommodate?

It is designed for combined loads, accommodating high radial forces and axial forces in one direction.

Can the inner and outer rings be mounted separately?

Yes, the inner ring with roller and cage assembly is separable from the outer ring, facilitating easy mounting and maintenance.

How do you support axial loads in both directions?

Mount two single-row tapered roller bearings against each other with preload to create a rigid arrangement in both directions.

What does the Q designation indicate?

The Q suffix indicates optimized contact profiles and geometry for reduced friction and extended service life.

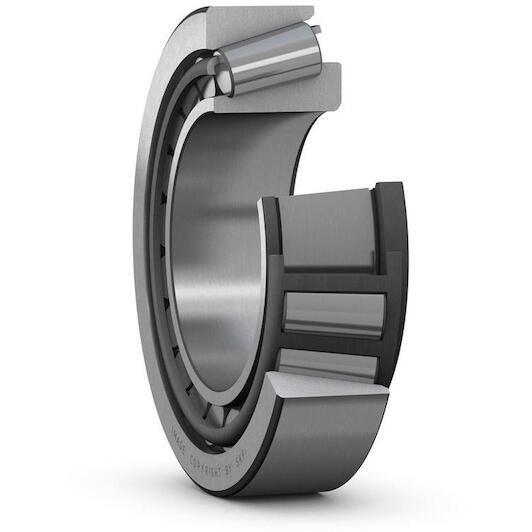

SKF 33108/Q single-row tapered roller bearing 40 x 75 x 26 mm with contact angle 13.33° - 33108

Supplier number: SKF 33108 | EAN 7316577749024

Recommended Retail Price €159.61

78.95 tax incl.

€65.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load support by Skf

Practical benefits

High combined load capacity: You reliably accommodate heavy radial and axial forces in one direction thanks to the robust conical raceway design.
Reduced friction during operation: The optimized contact geometry minimizes operational heat buildup, allowing your machinery to run smoothly with extended service intervals.
Simplified separable mounting: Because the inner cone and outer cup are separable, you complete installation, adjustments, and maintenance quickly and accurately.

In a nutshell

The right choise for

With the Skf 33108/Q single-row tapered roller bearing, you achieve outstanding reliability and rigid support for demanding mechanical assemblies. Designed with a 40 mm bore diameter, 75 mm outer diameter, and 26 mm width, this precision bearing reliably accommodates combined heavy radial and single-direction axial loads. Thanks to its 13.33° contact angle and optimized design, you minimize rotational friction and operational heat buildup, keeping gearboxes and transmission shafts running smoothly. The separable inner and outer rings allow you to complete installation, adjustments, and maintenance quickly and accurately.

Product information FAQ

€78.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Number of rows: 1
Outer diameter: 75 mm
Width: 26 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Number of rows: 1
Outer diameter: 75 mm
Width: 26 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 20.5
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 7000
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 104
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 26
Width, total: 26
Contact angle: 13.333333
Limiting speed: 9000
Bore diameter: 40
Basic dynamic load rating: 97.5
Coating: Without
Outer diameter: 75
Unit system: Metric

Brand SKF
01110281
EAN 7316577749024
Supplier number SKF 33108

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: The bore diameter is 40 mm, the outer diameter is 75 mm, and the total width is 26 mm.
What loads can this bearing accommodate?: It is designed for combined loads, accommodating high radial forces and axial forces in one direction.
Can the inner and outer rings be mounted separately?: Yes, the inner ring with roller and cage assembly is separable from the outer ring, facilitating easy mounting and maintenance.
How do you support axial loads in both directions?: Mount two single-row tapered roller bearings against each other with preload to create a rigid arrangement in both directions.
What does the Q designation indicate?: The Q suffix indicates optimized contact profiles and geometry for reduced friction and extended service life.
