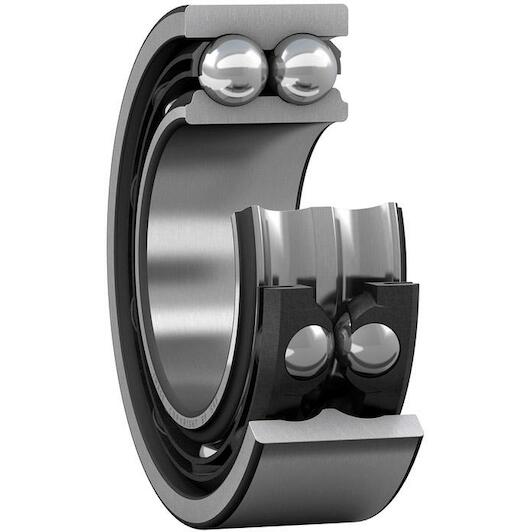

SKF 3222 A/C3 double-row angular contact ball bearing 110 x 200 x 69.8 mm with contact angle 30°

SKF
Supplier number: SKF 3222 A/C3 | EAN 7316570994650
Recommended Retail Price €2,816.96
1,394.60 tax incl.
€1,152.56 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,394.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 69,8 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 200 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
110 mm
Width
69,8 mm
Number of rows
2
Axial clearance
C3
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
200 mm
Basic static load rating
212
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
3400
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
C3
Contact angle
30
Limiting speed
2800
Bore diameter
110
Basic dynamic load rating
212
Coating
Without
Outer diameter
200
Universal matching bearing
No
  • Brand SKF
  • EAN 7316570994650
  • Supplier number SKF 3222 A/C3
