What are the dimensions of this SKF tapered roller bearing?

The bearing has an inside diameter of 75 mm, an outside diameter of 130 mm, and a total width of 33.25 mm.

Which loads can this single-row tapered roller bearing accommodate?

It is designed for combined loads, supporting heavy radial forces and axial forces in one direction simultaneously.

Can the inner ring be mounted separately from the outer ring?

Yes, the inner ring assembly and the outer ring are separable, which simplifies mounting, dismounting, and maintenance.

What does the 16.2° contact angle indicate?

The contact angle determines the axial load carrying capacity; a larger angle allows the bearing to support higher axial loads.

How is a single-row tapered roller bearing typically installed?

It is usually mounted against a second tapered roller bearing with preload applied to achieve a rigid bearing assembly.

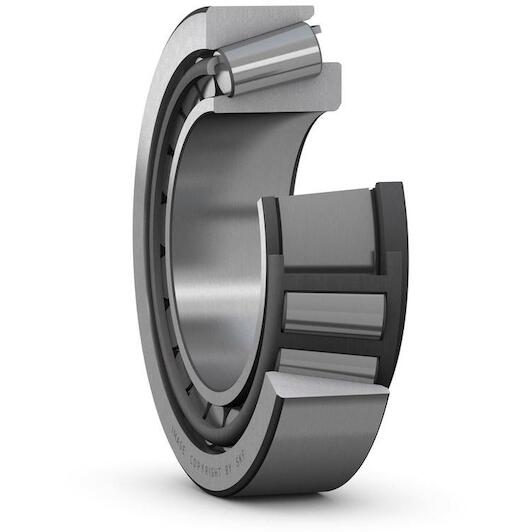

SKF 32215 J2/Q single-row tapered roller bearing 75 x 130 x 33.25 mm with contact angle 16.2° - 32215

Supplier number: SKF 32215 | EAN 7316577327673

Recommended Retail Price €184.27

91.20 tax incl.

€75.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with 32215 J2/Q

Practical benefits

High combined load capacity: You handle heavy radial and axial loads simultaneously in one direction with dependable running accuracy.
Easy mounting and maintenance: The separable inner and outer rings allow you to mount, inspect, and maintain the bearing effortlessly.
Reduced friction and wear: The optimized roller contact profile minimizes operating heat so you benefit from a longer service life.

In a nutshell

The right choise for

With the Skf 32215 J2/Q single-row tapered roller bearing, you ensure dependable and rigid shaft guidance under heavy operating conditions. Featuring dimensions of 75 x 130 x 33.25 mm and a 16.2° contact angle, it reliably handles high radial and axial loads simultaneously in one direction. The optimized roller contact profile significantly reduces friction and heat generation, resulting in a longer service life in industrial gearboxes, drive systems, and heavy machinery. Thanks to the separable inner and outer rings, mounting, setting with preload, and routine maintenance are straightforward and fast.

Product information FAQ

€91.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 130 mm
Width: 33,25 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 130 mm
Width: 33,25 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 27
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 4000
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 212
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 31
Width, total: 33.25
Contact angle: 16.172222222262
Limiting speed: 5000
Bore diameter: 75
Basic dynamic load rating: 197
Coating: Without
Outer diameter: 130
Unit system: Metric

Brand SKF
01110089
EAN 7316577327673
Supplier number SKF 32215

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF tapered roller bearing?: The bearing has an inside diameter of 75 mm, an outside diameter of 130 mm, and a total width of 33.25 mm.
Which loads can this single-row tapered roller bearing accommodate?: It is designed for combined loads, supporting heavy radial forces and axial forces in one direction simultaneously.
Can the inner ring be mounted separately from the outer ring?: Yes, the inner ring assembly and the outer ring are separable, which simplifies mounting, dismounting, and maintenance.
What does the 16.2° contact angle indicate?: The contact angle determines the axial load carrying capacity; a larger angle allows the bearing to support higher axial loads.
How is a single-row tapered roller bearing typically installed?: It is usually mounted against a second tapered roller bearing with preload applied to achieve a rigid bearing assembly.
