skf_3204a_2ztn9c3mt33
SKF

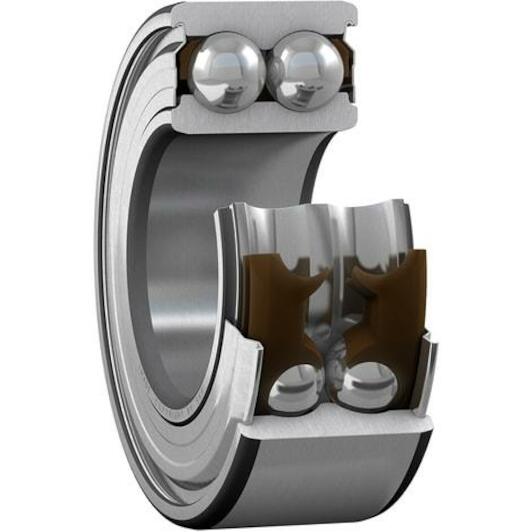

SKF 3204 A-2ZTN9/C3MT33 double-row angular contact ball bearing with protective plates on both sides 20 mm

Recommended Retail Price €117.72
58.20 tax incl.
€48.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 20,6 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316579319164
  • Supplier number: SKF 3204 A-2ZTN9/C3MT33
Inner diameter
20 mm
Width
20,6 mm
Number of rows
2
Axial clearance
C3
Outer diameter
47 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
12
Reference speed
16000
Relubrication feature
Without
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Lubricant
Grease
Sealing type
Non-contact
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Shield on both sides
Limiting speed
14000
Axial internal clearance
C3
Contact angle
30
Bore diameter
20
Basic dynamic load rating
19
Coating
Without
Outside diameter
47
Universal matching bearing
No
