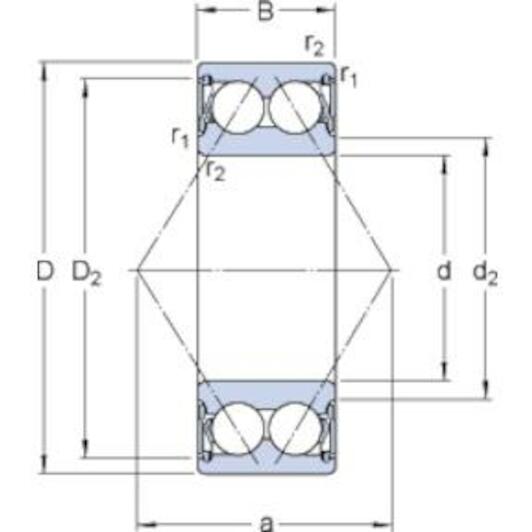

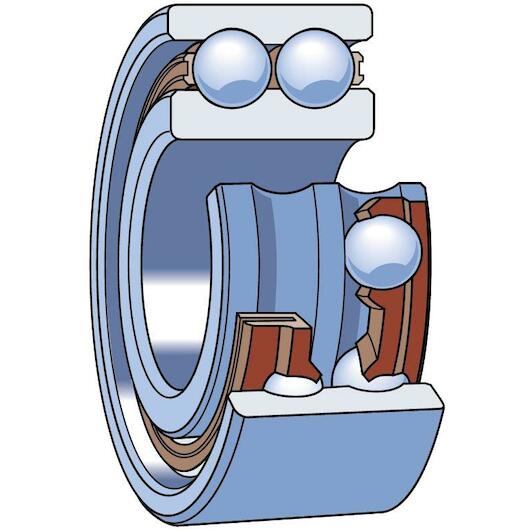

SKF 3202 A-2RS1TN9/W64 double-row angular contact ball bearing 15 x 35 x 15.9 mm with 30° contact angle

SKF
Supplier number: SKF 3202 A-2RS1TN9/W64 | EAN 7316570060041
This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 15 mm
  • Width: 15,9 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Rubber
  • Material (cage): Plastic
  • Outer diameter: 35 mm

Product description:

  • Angular contact ball bearings have raceways in the inner and outer rings that are offset relative to each other in the direction of the centre line of the bearing
  • This means that they are particularly suitable for combined loads, i.e. equally occurring radial and axial loads
  • The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases
  • The contact angle is defined as the angle between the line connecting the contact points of the ball and the raceways in the radial plain (along which the load is transferred from one raceway to the other) and the line perpendicular to the centreline of the bearing
  • Angular contact ball bearings are produced in a wide range of designs and sizes

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
15 mm
Width
15,9 mm
Number of rows
2
Axial clearance
CN (Normal)
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Rubber
Material (cage)
Plastic
Outer diameter
35 mm
Basic static load rating
6.8 kN
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Maximum operating temperature
85 °C
Contact type
Normal contact (two-point contact)
Sealing type
Contact
Matched arrangement
No
Relubrication feature
Without
Lubricant
Solid Oil
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Seal on both sides
Bore diameter
15 mm
Axial internal clearance
CN
Note
Limiting speed at 20 °C (70 °F) ambient temperature
Contact angle
30 °
Limiting speed
1,200 r/min
Basic dynamic load rating
11.2 kN
Coating
Without
Outer diameter
35 mm
Universal matching bearing
No
  • Brand SKF
  • EAN 7316570060041
  • Supplier number SKF 3202 A-2RS1TN9/W64
