What are the dimensions of this SKF bearing?

The bearing has an inside diameter of 75 mm, an outside diameter of 115 mm, and an overall width of 25 mm.

What loads can the SKF 32015 X/Q accommodate?

This single row tapered roller bearing accommodates combined radial and axial loads acting simultaneously in one direction.

What is the contact angle of this bearing?

This bearing features a contact angle of 17°.

Can the inner and outer rings be mounted separately?

Yes, the inner ring with roller assembly and the outer ring are separable and interchangeable for easy mounting.

Does this bearing accommodate axial loads in both directions?

No, a single row tapered roller bearing accommodates axial loads in one direction only. Use a second opposed bearing for both directions.

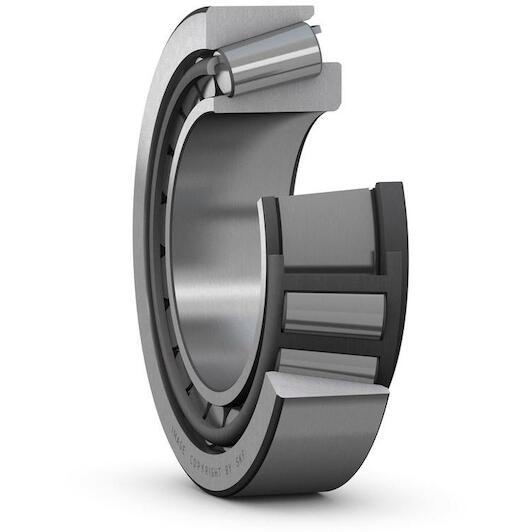

SKF 32015 X/Q single-row tapered roller bearing 75 x 115 x 25 mm with 17° contact angle - 32015 X

Supplier number: SKF 32015 X | EAN 7316577327482

Recommended Retail Price €147.75

72.95 tax incl.

€60.29 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable power transmission by Skf

Practical benefits

High combined load capacity: You accommodate high simultaneous radial and axial forces easily thanks to the precise 17° contact angle.
Low friction running performance: The refined raceway geometry minimizes friction and heat generation, helping you maximize the operating life of your machinery.
Fast and simple mounting: Because the inner and outer rings are separable, you complete installation, alignment, and routine maintenance with minimal effort.

In a nutshell

The right choise for

With the Skf 32015 X/Q single row tapered roller bearing, you ensure dependable power transmission in gearboxes, drivetrains, and heavy industrial pumps. Featuring dimensions of 75 x 115 x 25 mm, this bearing easily accommodates heavy combined radial loads and axial forces in one direction. Thanks to the 17° contact angle and refined raceways, it delivers low friction during operation, minimizing heat build-up and extending machine service life. The inner ring with roller assembly and the outer ring are separable, allowing you to complete installation, alignment, and routine maintenance quickly and efficiently.

Product information FAQ

€72.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 115 mm
Width: 25 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 115 mm
Width: 25 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 19
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 4300
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 163
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 25
Width, total: 25
Contact angle: 17.000000000042
Limiting speed: 5300
Bore diameter: 75
Basic dynamic load rating: 130
Coating: Without
Outer diameter: 115
Unit system: Metric

Brand SKF
01110067
EAN 7316577327482
Supplier number SKF 32015 X

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has an inside diameter of 75 mm, an outside diameter of 115 mm, and an overall width of 25 mm.
What loads can the SKF 32015 X/Q accommodate?: This single row tapered roller bearing accommodates combined radial and axial loads acting simultaneously in one direction.
What is the contact angle of this bearing?: This bearing features a contact angle of 17°.
Can the inner and outer rings be mounted separately?: Yes, the inner ring with roller assembly and the outer ring are separable and interchangeable for easy mounting.
Does this bearing accommodate axial loads in both directions?: No, a single row tapered roller bearing accommodates axial loads in one direction only. Use a second opposed bearing for both directions.
