What are the dimensions of this bearing?

The bearing has a 10 mm bore, a 30 mm outside diameter, and a width of 14 mm.

What loads can this bearing accommodate?

This double-row angular contact ball bearing accommodates combined radial and axial loads acting in both directions.

What does the ATN9 designation mean for SKF?

It indicates an optimized internal design and a glass-fibre reinforced PA66 polyamide cage.

Is this SKF bearing sealed?

No, this is an open bearing without seals, intended for external grease or oil lubrication.

What are the contact angle and clearance rating?

It has a 30° contact angle and normal internal radial clearance (CN).

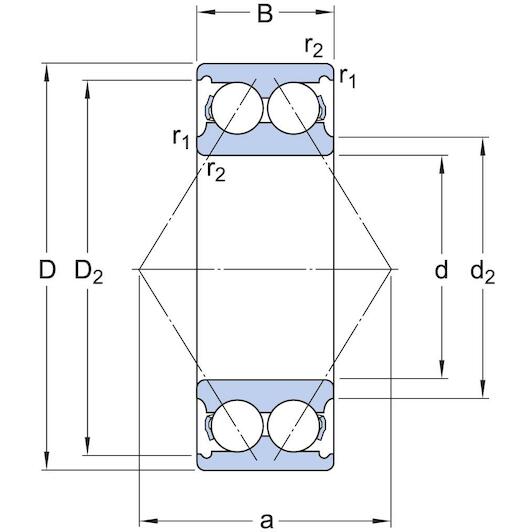

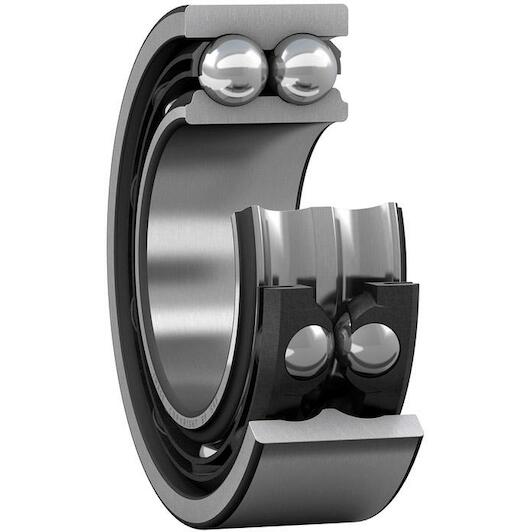

SKF 3200 ATN9 double-row angular contact ball bearing 10 x 30 x 14 mm with 30° contact angle

Supplier number: SKF 3200 ATN9 | EAN 7316577086334

Recommended Retail Price €84.40

41.60 tax incl.

€34.38 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf precision

Practical benefits

Combined load capacity: You accommodate simultaneous radial and dual-direction axial loads easily thanks to the double-row ball design.
High speed performance: The lightweight polyamide cage reduces friction so you achieve smooth and stable rotation at high operating speeds.
Compact and rigid setup: You save axial shaft space while securing a rigid bearing arrangement inside compact machinery housings.

In a nutshell

The right choise for

With the Skf 3200 ATN9 double-row angular contact ball bearing, you easily handle simultaneous high radial and dual-direction axial loads in tight spaces. This open 10 x 30 x 14 mm bearing replaces two separate single-row bearings, saving valuable shaft space when building or servicing pumps, compressors, and industrial gearboxes. Its lightweight, glass-fibre reinforced PA66 polyamide cage minimizes friction to ensure smooth, stable rotation at high operating speeds. Featuring a 30° contact angle and normal cn clearance, it delivers a rigid, precise bearing arrangement ready for external grease or oil lubrication.

Product information FAQ

€41.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 30 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 30 mm
Basic static load rating: 4.3
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 26000
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Without
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 24000
Bore diameter: 10
Basic dynamic load rating: 7.61
Coating: Without
Outer diameter: 30
Universal matching bearing: No

Brand SKF
01050001
EAN 7316577086334
Supplier number SKF 3200 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 10 mm bore, a 30 mm outside diameter, and a width of 14 mm.
What loads can this bearing accommodate?: This double-row angular contact ball bearing accommodates combined radial and axial loads acting in both directions.
What does the ATN9 designation mean for SKF?: It indicates an optimized internal design and a glass-fibre reinforced PA66 polyamide cage.
Is this SKF bearing sealed?: No, this is an open bearing without seals, intended for external grease or oil lubrication.
What are the contact angle and clearance rating?: It has a 30° contact angle and normal internal radial clearance (CN).
