What are the dimensions of this angular contact ball bearing?

The bearing has a 10 mm bore, a 30 mm outside diameter, and a width of 14 mm.

What types of loads can this double-row bearing support?

It accommodates combined radial and axial loads in both directions with its 30° contact angle.

What does the 2Z designation mean on this bearing?

The 2Z code indicates that the bearing is fitted with metal shields on both sides.

What material is the bearing cage made from?

The cage of the SKF 3200 A-2ZTN9/MT33 is made from glass-fibre reinforced polyamide (TN9).

What is the internal clearance of this bearing?

This bearing features a standard normal axial internal clearance (CN).

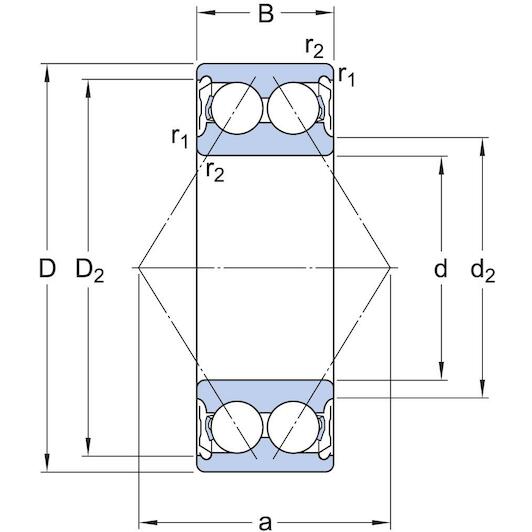

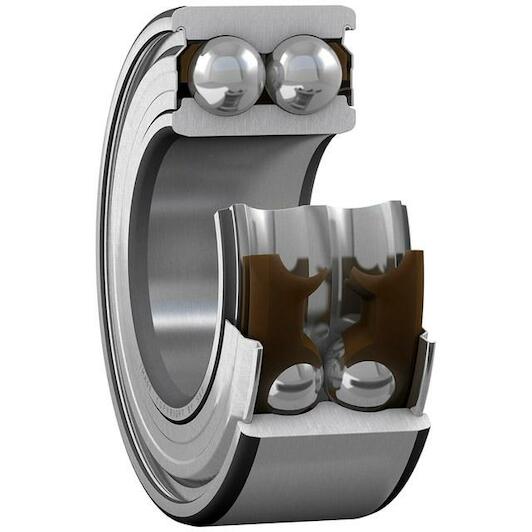

SKF 3200 A-2ZTN9/MT33 double-row angular contact ball bearing 10 x 30 x 14 mm with 30° contact angle

Supplier number: SKF 3200 A-2ZTN9/MT33 | EAN 7316570212396

Recommended Retail Price €96.09

47.40 tax incl.

€39.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High load stability with Skf

Practical benefits

Reliable double metal shielding: Metal shields on both sides protect your bearing against external contamination while ensuring the internal grease stays securely contained.
Combined load capacity handling: The double-row layout and 30° contact angle allow you to support heavy radial forces and bidirectional axial loads effortlessly.
Smooth high-speed performance: The reinforced polymer cage minimizes friction during operation, giving you quiet running performance even at high rotational speeds.

In a nutshell

The right choise for

With the Skf 3200 A-2ZTN9/MT33 double-row angular contact ball bearing, you handle demanding combined radial and bidirectional axial loads with confidence. Featuring a 30° contact angle and compact dimensions of 10 x 30 x 14 mm, it saves valuable axial mounting space in electric motors, pumps, and gearboxes. The non-contact metal shields on both sides retain the factory MT33 grease and keep out workshop dust and dirt. Its glass-fibre reinforced polyamide cage minimizes friction, ensuring smooth, quiet running and low heat generation at high rotational speeds.

Product information FAQ

€47.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 30 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 30 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 4.3
Sealing type: Non-contact
Relubrication feature: Without
Reference speed: 26000
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Shield on both sides
Bore diameter: 10
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 24000
Basic dynamic load rating: 7.61
Coating: Without
Outer diameter: 30
Universal matching bearing: No

Brand SKF
01050352
EAN 7316570212396
Supplier number SKF 3200 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has a 10 mm bore, a 30 mm outside diameter, and a width of 14 mm.
What types of loads can this double-row bearing support?: It accommodates combined radial and axial loads in both directions with its 30° contact angle.
What does the 2Z designation mean on this bearing?: The 2Z code indicates that the bearing is fitted with metal shields on both sides.
What material is the bearing cage made from?: The cage of the SKF 3200 A-2ZTN9/MT33 is made from glass-fibre reinforced polyamide (TN9).
What is the internal clearance of this bearing?: This bearing features a standard normal axial internal clearance (CN).
