SKF

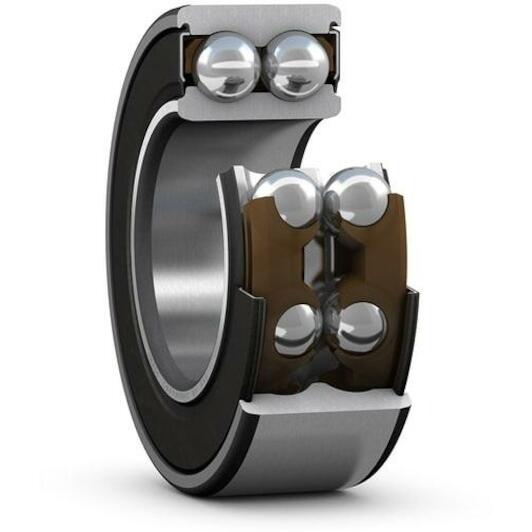

SKF 3200 A-2RS1TN9 double-row angular contact ball bearing with seal on both sides 10 mm

Recommended Retail Price €97.39
48.20 tax incl.
€39.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 10 mm
  • Width: 14 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Double-sided sealed
  • Material (cage): Plastic
  • Outer diameter: 30 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570399752
  • Supplier number: SKF 3200 A-2RS1TN9
Inner diameter
10 mm
Width
14 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Double-sided sealed
Material (cage)
Plastic
Outer diameter
30 mm
Basic static load rating
4.3
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Sealing type
Contact
Matched arrangement
No
Relubrication feature
Without
Lubricant
Grease
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Seal on both sides
Bore diameter
10
Axial internal clearance
CN
Contact angle
30
Limiting speed
17000
Basic dynamic load rating
7.61
Coating
Without
Outside diameter
30
Universal matching bearing
No
