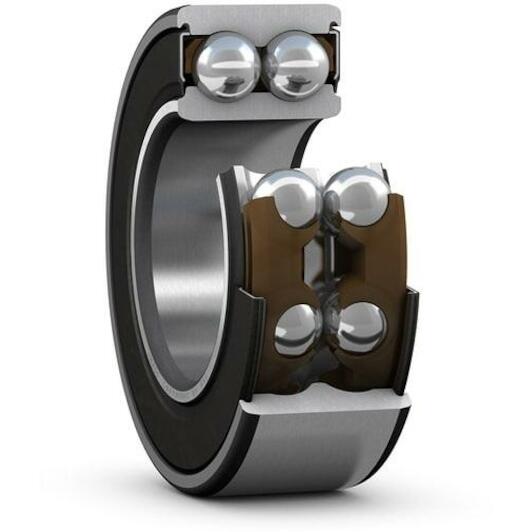

SKF 3200 A-2RS1TN9/C3 double-row angular contact ball bearing with seal on both sides 10 mm

SKF
Supplier number: SKF 3200 A-2RS1TN9/C3 | EAN 7316573930747
Recommended Retail Price €101.19
49.95 tax incl.
€41.28 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€49.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 10 mm
  • Axial clearance: C3
  • Outer diameter: 30 mm
  • Number of rows: 2
  • Width: 14 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

All Features

Inner diameter
10 mm
Axial clearance
C3
Outer diameter
30 mm
Number of rows
2
Width
14 mm
Material, bearing
Bearing steel
Cage
Non-metallic
Sealing type
Contact
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
4.3
Contact type
Normal contact (two-point contact)
Ring type
One-piece inner and outer rings
Locating feature, bearing outer ring
None
Sealing
Seal on both sides
Lubricant
Grease
Limiting speed
17000
Axial internal clearance
C3
Contact angle
30
Bore diameter
10
Basic dynamic load rating
7.61
Coating
Without
Outer diameter
30
Universal matching bearing
No
  • Brand SKF
  • EAN 7316573930747
  • Supplier number SKF 3200 A-2RS1TN9/C3
