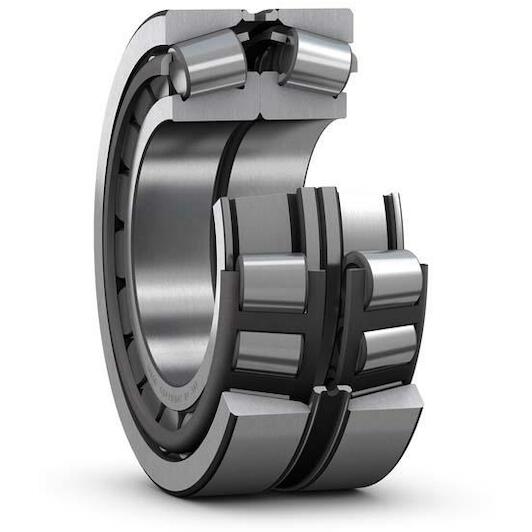

SKF 31328 X/DF Paired tapered roller bearings in X arrangement 140 mm

SKF
Supplier number: SKF 31328 X/DF | EAN 7316577448866
Recommended Retail Price €13,965.20
6,913.95 tax incl.
€5,714.01 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€6,913.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 140 mm
  • Width: 154 mm
  • Number of rows: 2
  • Outer diameter: 300 mm

Product description

Matched tapered roller bearings arranged face-to-face (X-arrangement, load lines diverge towards the bearing axis) accommodate high radial loads and axial loads in both directions. The precision manufactured intermediate ring between the outer rings enables a defined internal clearance or preload to be achieved when mounted. Matched tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills, and machines in the mining industry.

  • High radial load carrying capacity
  • Designed for axial loads in both directions
  • Relatively high stiffness
  • Surface finish on the contact surfaces of the rollers and raceways that enhances operational reliability

All Features

Inner diameter
140 mm
Width
154 mm
Number of rows
2
Outer diameter
300 mm
Width, total
154
Cage
Sheet metal
Width, outer ring
154
Lubricant
None
Reference speed
1200
Relubrication feature
With
Matched arrangement
Face-to-face (X)
Basic static load rating
1800
Number of bearings in matched set
2
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
28.810833333405
Width, inner ring
140
Limiting speed
2200
Bore diameter
140
Basic dynamic load rating
1264
Coating
Without
Outer diameter
300
Bore type
Cylindrical
  • Brand SKF
  • EAN 7316577448866
  • Supplier number SKF 31328 X/DF
