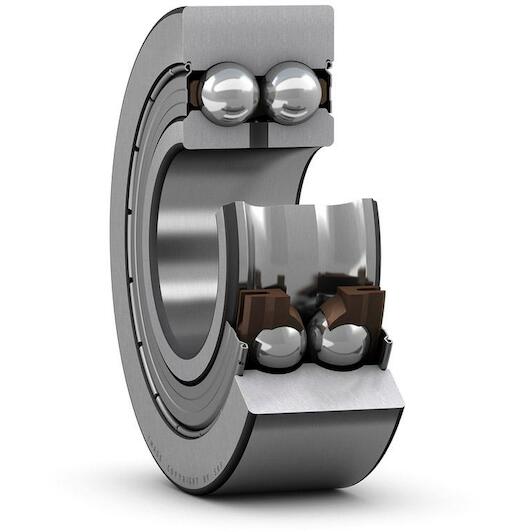

SKF 305806 C-2Z two-row cam roller (Yoke-type idler) 30 x 72 x 23.8 mm

SKF
Supplier number: SKF 305806 C-2Z | EAN 7316577008183
Recommended Retail Price €226.88
112.20 tax incl.
€92.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€112.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 30 mm
  • Width: 23,8 mm
  • Number of rows: 2
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Metal
  • Radial clearance: Not applicable
  • Axial clearance: CN (Normal)
  • Outer ring profile: Spherical
  • Outer diameter: 72 mm

Product description

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity and relatively high speed capability
  • Accommodate tilting moments
  • Long service life
  • Ready to mount
  • Integral sealing, for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
30 mm
Width
23,8 mm
Number of rows
2
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Metal
Radial clearance
Not applicable
Axial clearance
CN (Normal)
Outer ring profile
Spherical
Outer diameter
72 mm
Basic static load rating
1.7
Bearing part
Complete track roller
Tolerance class
Normal (except crowned running surface)
Radial internal clearance
Not applicable
Material, bearing
Bearing steel
Relubrication feature
With
Lubricant
Grease
Sealing type
Non-contact
Cage
With
Sealing
Shield on both sides
Functional outside diameter
72
Axial guidance of outer ring
Yes
Axial internal clearance
Normal
Limiting speed
6700
Bore diameter
30
Basic dynamic load rating
27
Coating
Without
Rolling elements
Balls
  • Brand SKF
  • EAN 7316577008183
  • Supplier number SKF 305806 C-2Z
