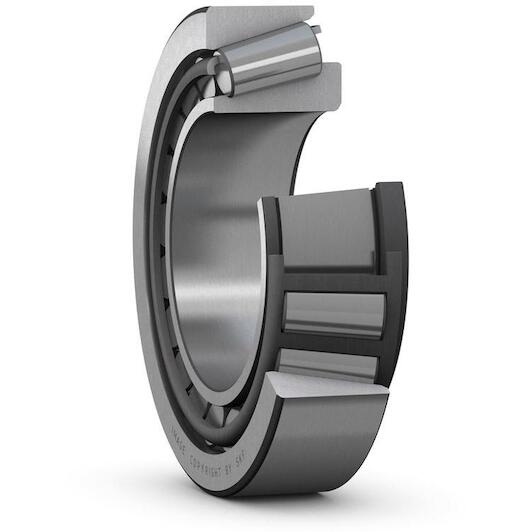

SKF 30324 J2 single-row tapered roller bearing 120 x 260 x 59.5 mm with contact angle 13° - 30324

Recommended Retail Price €3,629.23
1,796.80 tax incl.
€1,484.96 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Delivery by DHL

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 59,5 mm
  • Number of rows: 1
  • Outer diameter: 260 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577327253
  • Supplier number: SKF 30324
Inner diameter
120 mm
Width
59,5 mm
Number of rows
1
Outer diameter
260 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
46
Lubricant
None
Reference speed
2000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
710
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
12.95277777781
Width, total
59.5
Width, inner ring
55
Limiting speed
2600
Bore diameter
120
Basic dynamic load rating
601
Coating
Without
Outside diameter
260
Unit system
Metric
