What are the dimensions of this tapered roller bearing?

The bearing has an inside diameter of 85 mm, an outside diameter of 150 mm, and a total width of 30.5 mm.

What loads can this SKF bearing accommodate?

This single row tapered roller bearing is designed to handle combined radial and axial loads simultaneously.

Are the inner and outer rings separable?

Yes, the inner ring assembly (cone) and the outer ring (cup) are separable for easier mounting.

What is the contact angle of this bearing?

The contact angle is 15.6°, providing effective support for axial loads acting in one direction.

What does the suffix J2/Q stand for in SKF bearings?

J2 indicates a pressed sheet steel cage, and Q denotes optimized internal geometry and surface finish.

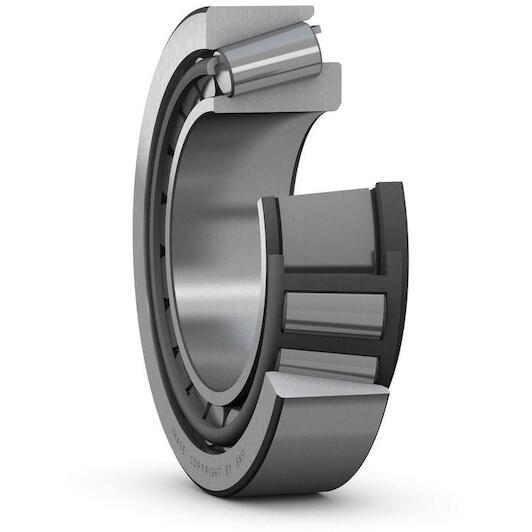

SKF 30217 J2/Q single-row tapered roller bearing 85 x 150 x 30.5 mm with contact angle 15.6° - 30217

Supplier number: SKF 30217 | EAN 7316577326973

Recommended Retail Price €247.26

122.40 tax incl.

€101.16 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable heavy load support with Skf

Practical benefits

Combined load capacity: With a 15.6° contact angle, you efficiently accommodate high simultaneous radial and axial forces in one direction.
Separable design for mounting: The separable cup and cone design allows you to easily mount and maintain components without unnecessary effort.
Sturdy pressed steel cage: The robust sheet metal cage guides the tapered rollers evenly, ensuring smooth operation across demanding mechanical assemblies.

In a nutshell

The right choise for

With the Skf 30217 J2/Q single row tapered roller bearing, you keep rotating machinery operating reliably under demanding operational loads. Featuring a 15.6° contact angle, this bearing accommodates heavy simultaneous radial and single-direction axial forces, making it ideal for maintaining industrial gearboxes, transmission shafts, and heavy vehicle wheel hubs. The sturdy pressed sheet steel cage guides the tapered rollers evenly, reducing rotational friction and heat buildup during heavy-duty use. Thanks to its separable cup and cone design, mounting and dismounting are fast and straightforward. Measuring 85 x 150 x 30.5 mm, it ensures rigid shaft guidance and dependable long-term performance.

Product information FAQ

€122.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 85 mm
Number of rows: 1
Outer diameter: 150 mm
Width: 30,5 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 85 mm
Number of rows: 1
Outer diameter: 150 mm
Width: 30,5 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 24
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 3600
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 220
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 28
Width, total: 30.5
Contact angle: 15.642222222261
Limiting speed: 4300
Bore diameter: 85
Basic dynamic load rating: 216
Coating: Without
Outer diameter: 150
Unit system: Metric

Brand SKF
01110015
EAN 7316577326973
Supplier number SKF 30217

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: The bearing has an inside diameter of 85 mm, an outside diameter of 150 mm, and a total width of 30.5 mm.
What loads can this SKF bearing accommodate?: This single row tapered roller bearing is designed to handle combined radial and axial loads simultaneously.
Are the inner and outer rings separable?: Yes, the inner ring assembly (cone) and the outer ring (cup) are separable for easier mounting.
What is the contact angle of this bearing?: The contact angle is 15.6°, providing effective support for axial loads acting in one direction.
What does the suffix J2/Q stand for in SKF bearings?: J2 indicates a pressed sheet steel cage, and Q denotes optimized internal geometry and surface finish.
