SKF 29426 E spherical roller bearing cylindrical 130 x 270 x 85 mm

Recommended Retail Price €5,304.98
2,626.40 tax incl.
€2,170.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

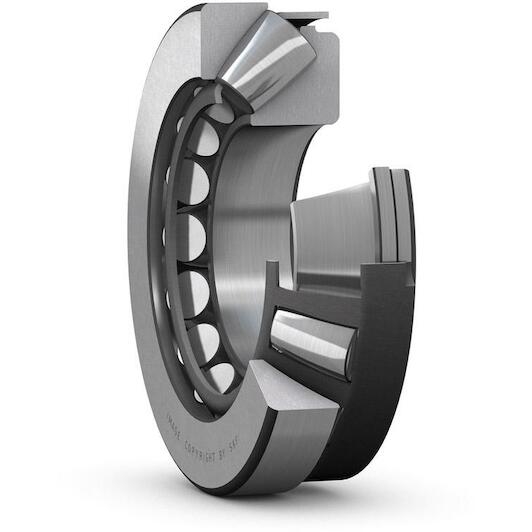

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

  • High load carrying capacity
  • Can accommodate combined loads
  • Allow misalignment or create very stiff bearing arrangements
  • Long service life and low friction
  • Separable design
Key features according to our expert
  • Inner diameter: 130 mm
  • Outer diameter: 270 mm
  • Width: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576609107
  • Supplier number: SKF 29426 E
Inner diameter
130 mm
Outer diameter
270 mm
Width
85 mm
Cage
Sheet metal
Skf performance class
SKF Explorer
Reference speed
1300
Basic static load rating
4050
Tolerance class
Normal
Locating feature, housing washer
None
Limiting speed
2400
Basic dynamic load rating
1560
Bore diameter
130
Height
85
Outside diameter
270
Bore type
Cylindrical
