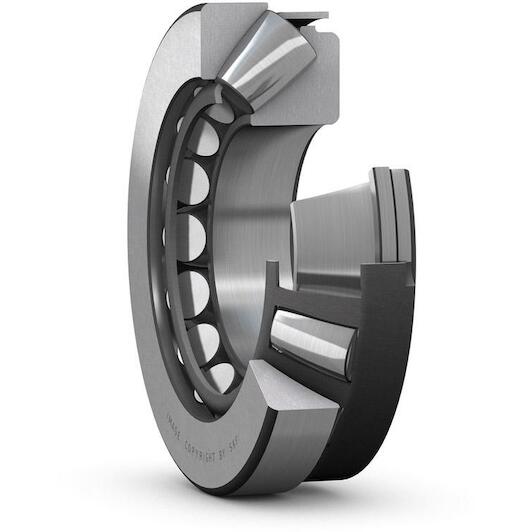

SKF 29324 E rebate bearing cylindrical 120 x 210 x 54 mm

Supplier number: SKF 29324 E | EAN 7316576608933

Recommended Retail Price €2,979.96

1,475.20 tax incl.

€1,219.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable capacity for heavy axial loads

Practical benefits

High combined load rating: You accommodate severe axial forces alongside simultaneous radial loads in demanding industrial machinery setups.
Smooth self-aligning capability: The spherical design ensures you compensate for shaft misalignments and deflections without causing friction or excessive wear.
Durable Skf steel cage: Built with a pressed sheet metal cage, the bearing delivers consistent guidance and long service life under high speeds.

In a nutshell

The right choise for

With the Skf 29324 e spherical roller thrust bearing, you keep heavy industrial machinery running smoothly under demanding operating conditions. Featuring a cylindrical bore, this bearing easily accommodates severe axial forces alongside simultaneous radial loads in heavy gearboxes, extruders, and marine propulsion assemblies. Its self-aligning spherical raceway design compensates for shaft deflections and angular misalignment without generating excessive friction or edge stress. The robust stamped sheet steel cage provides dependable roller guidance and extended service life at high speeds, helping you minimize unexpected downtime and maintain peak equipment reliability.

Product information FAQ

€1,475.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 120 mm
Outer diameter: 210 mm
Width: 54 mm

Product description

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 120 mm
Outer diameter: 210 mm
Width: 54 mm
Cage: Sheet metal
Skf performance class: SKF Explorer
Reference speed: 1700
Basic static load rating: 2120
Tolerance class: Normal
Locating feature, housing washer: None
Limiting speed: 2800
Basic dynamic load rating: 765
Bore diameter: 120
Height: 54
Outside diameter: 210
Bore type: Cylindrical

Brand SKF
01170039
EAN 7316576608933
Supplier number SKF 29324 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 120 mm bore diameter, a 210 mm outside diameter, and a height of 54 mm.
What types of load can the SKF 29324 E accommodate?: This spherical roller thrust bearing accommodates very heavy axial loads and simultaneous radial loads.
What cage material does this bearing use?: This bearing is equipped with a stamped sheet steel cage.
Can this bearing accommodate shaft misalignment?: Yes, its spherical design makes it self-aligning and accommodates shaft deflections and angular misalignment.
Does the SKF 29324 E have a cylindrical bore?: Yes, it features a standard cylindrical bore for mounting onto a 120 mm shaft.
