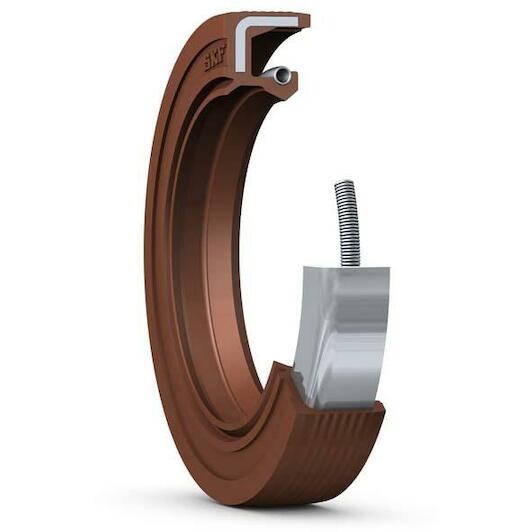

SKF 280X320X20 HMSA10 V radial shaft seal with rubber outer diameter and single sealing lip, for oil or grease

SKF
Supplier number: SKF 280X320X20 HMSA10 V | EAN 00085311487764
Recommended Retail Price €448.15
224.60 tax incl.
€185.62 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€224.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 280 mm
  • Width: 20 mm
  • Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
  • With dust lip: Yes
  • Version (radial oil seal according to DIN 3760): AS
  • Outer diameter: 320 mm

Product description

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodate misalignment

All Features

Inner diameter
280 mm
Width
20 mm
Material
FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip
Yes
Version (radial oil seal according to din 3760)
AS
Outer diameter
320 mm
Auxiliary lip
Yes
Minimum operating temperature
-25
Rotational speed
2580
Type of outside diameter
Rubber metal reinforced
Unit system
Metric
Seal width
20
Maximum operating temperature
200
Housing bore diameter
320
Limiting speed
2580
Design
HMSA10
Sealing lip material
Fluoro rubber (FKM)
Shaft diameter
280
Permissible circumferential speed
37.99
  • Brand SKF
  • EAN 00085311487764
  • Supplier number SKF 280X320X20 HMSA10 V
