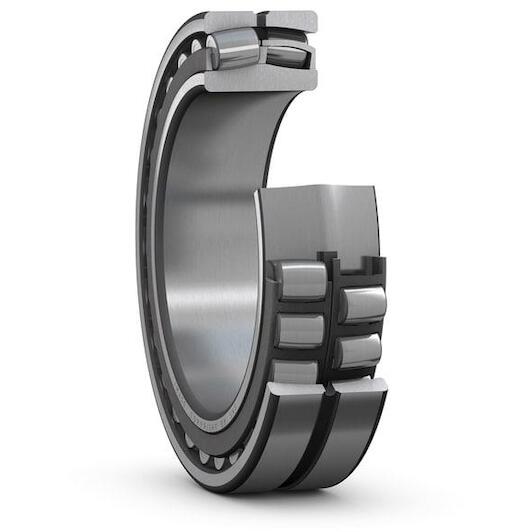

SKF 24164 CC/W33 spherical roller bearing with relubrication capability 320 mm

SKF
Supplier number: SKF 24164 CC/W33 | EAN 7316577119810
Recommended Retail Price €30,315.74
15,009.20 tax incl.
€12,404.30 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€15,009.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 320 mm
  • Width: 218 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 540 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

All Features

Inner diameter
320 mm
Width
218 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
540 mm
Skf performance class
SKF Explorer
Basic static load rating
7100
Relubrication feature
With
Reference speed
500
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
Normal
Radial internal clearance
CN
Basic dynamic load rating
4395
Sealing
Without
Limiting speed
700
Bore diameter
320
Outside diameter
540
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316577119810
  • Supplier number SKF 24164 CC/W33
