SKF

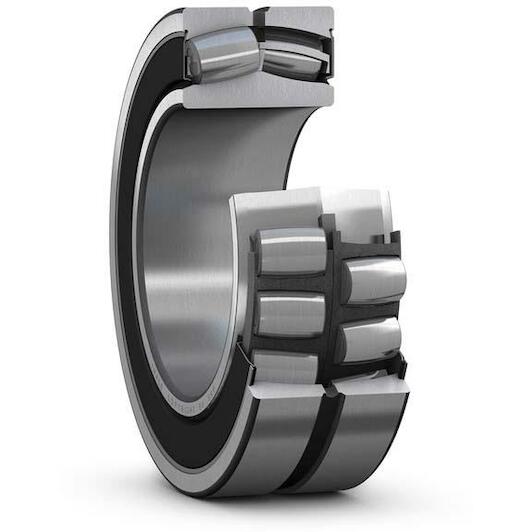

SKF 24124-2CS5/VT143 spherical roller bearing with sealing on both sides and relubrication options 120 mm

Recommended Retail Price €2,565.65
1,270.20 tax incl.
€1,049.75 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 80 mm
  • Number of rows: 2
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573402367
  • Supplier number: SKF 24124-2CS5/VT143
Inner diameter
120 mm
Width
80 mm
Number of rows
2
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
200 mm
Lubricant
Grease
Basic static load rating
950
Relubrication feature
With
Skf performance class
SKF Explorer
Candidate for remanufacturing
Yes
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Sealing
Seal on both sides
Limiting speed
720
Bore diameter
120
Basic dynamic load rating
680
Outside diameter
200
Tolerance class for dimensions
Normal
