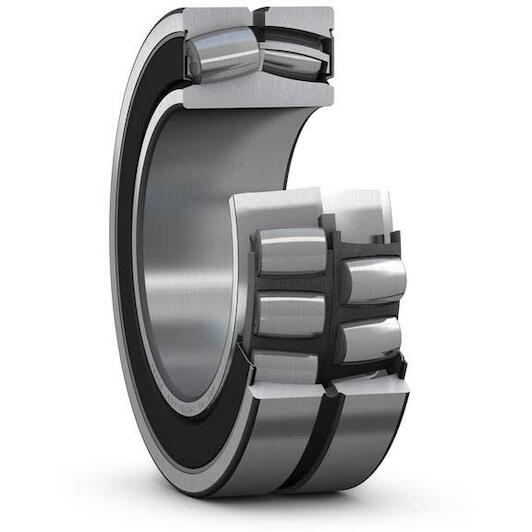

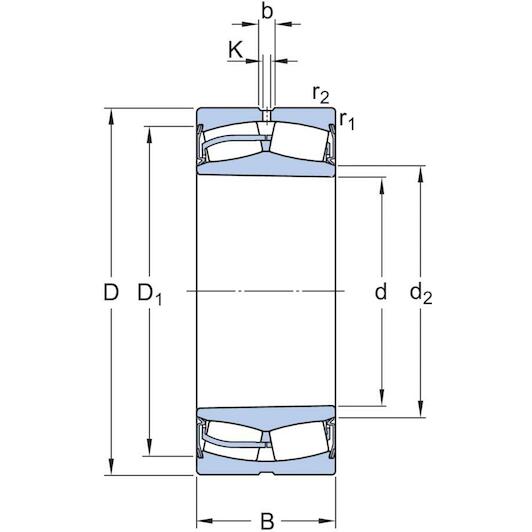

SKF 23234-2CS5K/VT143 spherical roller bearing with tapered bore, seal on both sides and relubrication options 170 mm

SKF
Supplier number: SKF 23234-2CS5K/VT143 | EAN 7316580005315
Recommended Retail Price €8,358.83
4,138.40 tax incl.
€3,420.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€4,138.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 170 mm
  • Width: 110 mm
  • Number of rows: 2
  • Sealing (bearing): Sealed on both sides
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Tapered
  • Outer diameter: 310 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

All Features

Inner diameter
170 mm
Width
110 mm
Number of rows
2
Sealing (bearing)
Sealed on both sides
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Tapered
Outer diameter
310 mm
Lubricant
Grease
Basic static load rating
1960
Relubrication feature
With
Skf performance class
SKF Explorer
Candidate for remanufacturing
Yes
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Sealing
Seal on both sides
Limiting speed
480
Bore diameter
170
Basic dynamic load rating
1476
Outer diameter
310
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316580005315
  • Supplier number SKF 23234-2CS5K/VT143
