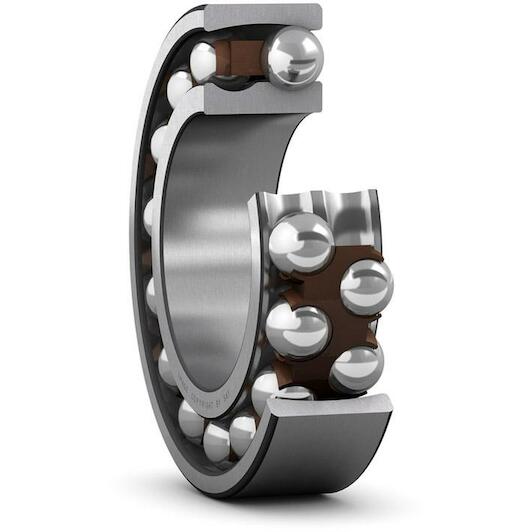

SKF 2308 EKTN9/C3 double-row self-aligning ball bearing tapered 40x90x33 mm

SKF
Supplier number: SKF 2308 EKTN9/C3 | EAN 7316570017960
Recommended Retail Price €263.48
130.40 tax incl.
€107.77 excl. VAT (incl. all environmental contributions)
On order: delivered from 15/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€130.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Width: 33 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Plastic
  • Bore type: Tapered
  • Outer diameter: 90 mm

Product description

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

  • Ease of mounting via adapter sleeves or withdrawal sleeves
  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
40 mm
Width
33 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Plastic
Bore type
Tapered
Outer diameter
90 mm
Basic static load rating
16
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
C3
Cage
Non-metallic
Relubrication feature
Without
Reference speed
14000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
10000
Bore diameter
40
Basic dynamic load rating
54
Outer diameter
90
  • Brand SKF
  • EAN 7316570017960
  • Supplier number SKF 2308 EKTN9/C3
