SKF

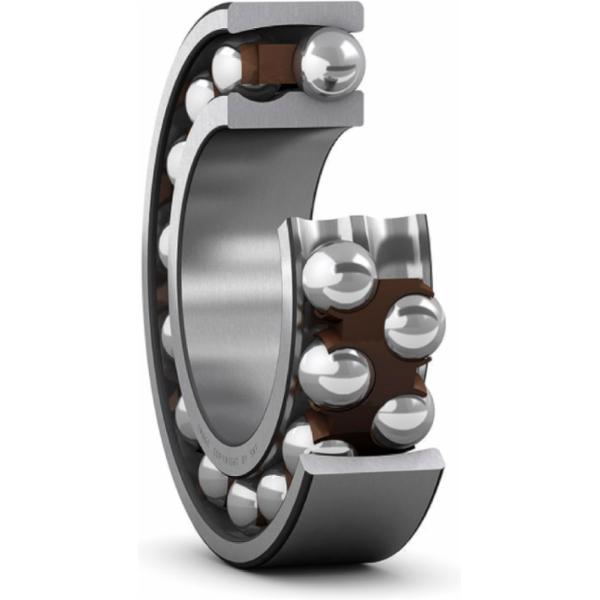

SKF 2305 ETN9/C3 double-row self-aligning ball bearing cylindrical 25x62x24 mm

This article is not available

Product description:

  • The double-row self-adjusting ball bearing has two rows of balls and a common spherical raceway in the outer ring
  • This allows the bearing to set itself and is insensitive to misalignment with respect to the bearing housing
  • This bearing is particularly suitable for bearing constructions where significant shaft deflections or misalignments must be taken into account
  • Another advantage of self-aligning ball bearings is that they have the lowest friction of all rolling bearings, so this bearing generates less frictional heat even at higher speeds
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 24 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576641763
  • Supplier number: SKF 2305 ETN9/C3
Inner diameter
25 mm
Width
24 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Plastic
Bore type
Cylindrical
Outer diameter
62 mm
Basic static load rating
7.1 kN
Retaining feature, inner ring
None
Radial internal clearance
C3
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
22,000 r/min
Lubricant
None
Cage
Non-metallic
Locating feature, bearing outer ring
None
Tolerance class
Normal
Basic dynamic load rating
27 kN
Sealing
Without
Limiting speed
15,000 r/min
Bore diameter
25 mm
Coating
Without
Outside diameter
62 mm
