SKF 22446 radial shaft seal with double metal housing and Wave-lip, for oil or grease

Recommended Retail Price €28.70

14.20 tax incl.

€11.73 excl. VAT (incl. all environmental contributions)

SKF 22446 radial shaft seal with double metal housing and Wave-lip, for oil or grease

€14.20 Recommended Retail Price €28.70

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

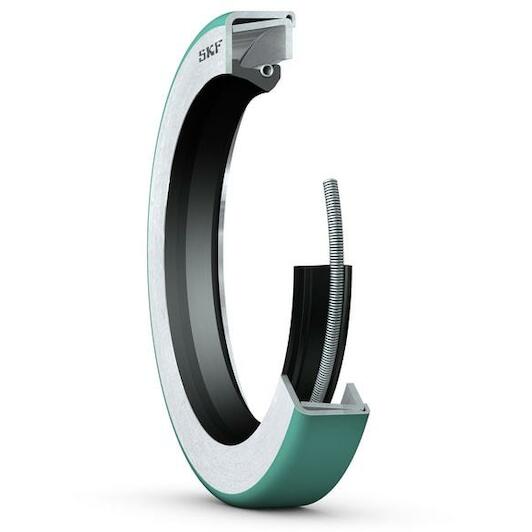

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWH1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point

Key features according to our expert

Inner diameter: 57,15 mm
Width: 11,13 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: No
Version (radial oil seal according to DIN 3760): C
Outer diameter: 82,57 mm

Specifications / All features

Brand: SKF
08125148
EAN: 00085311025010
Supplier number: SKF 22446

Inner diameter: 57,15 mm
Width: 11,13 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: No
Version (radial oil seal according to din 3760): C
Outer diameter: 82,57 mm
Auxiliary lip: No
Minimum operating temperature: -40
Rotational speed: 2820
Type of outside diameter: Metal-cased with sealant coating on the outside diameter
Unit system: Inch
Seal width: 11.13
Maximum operating temperature: 100
Housing bore diameter: 82.5754
Limiting speed: 2820
Design: CRWH1
Sealing lip material: Nitrile rubber (NBR)
Shaft diameter: 57.15
Permissible circumferential speed: 8.38
