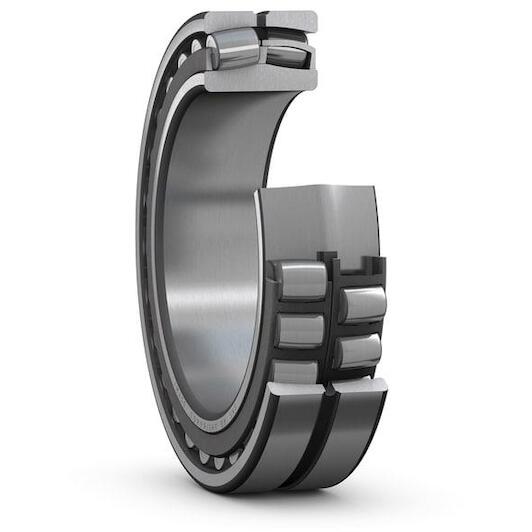

SKF 22344 CC/W33 spherical roller bearing with relubrication 220 mm

Recommended Retail Price €14,753.58
7,304.40 tax incl.
€6,036.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 220 mm
  • Width: 145 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 460 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576654770
  • Supplier number: SKF 22344 CC/W33
Inner diameter
220 mm
Width
145 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
460 mm
Skf performance class
SKF Explorer
Basic static load rating
3450
Relubrication feature
With
Reference speed
1000
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Basic dynamic load rating
2839
Sealing
Without
Limiting speed
1400
Bore diameter
220
Outside diameter
460
Tolerance class for dimensions
Normal
