SKF

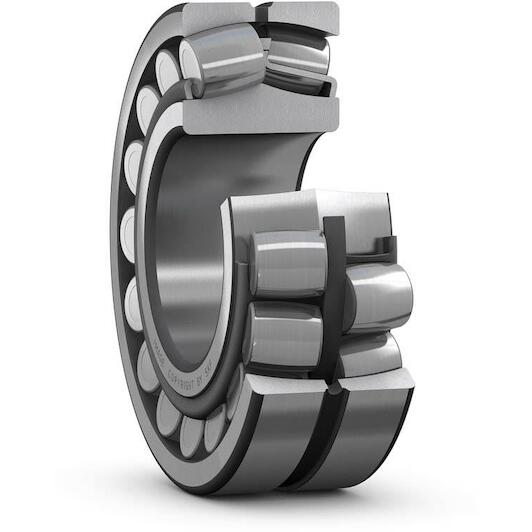

SKF 22219 E spherical roller bearing cylindrical 95 x 170 x 43 mm

Recommended Retail Price €778.57
385.40 tax incl.
€318.51 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 8 products in stock.
each

  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 95 mm
  • Width: 43 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570611991
  • Supplier number: SKF 22219 E
Inner diameter
95 mm
Width
43 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
170 mm
Reference speed
3600
Basic static load rating
450
Relubrication feature
With
Tolerance class for run-out
P5
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Radial internal clearance
CN
Basic dynamic load rating
393
Sealing
Without
Limiting speed
4800
Bore diameter
95
Outside diameter
170
Tolerance class for dimensions
Normal
