What are the dimensions of this bearing?

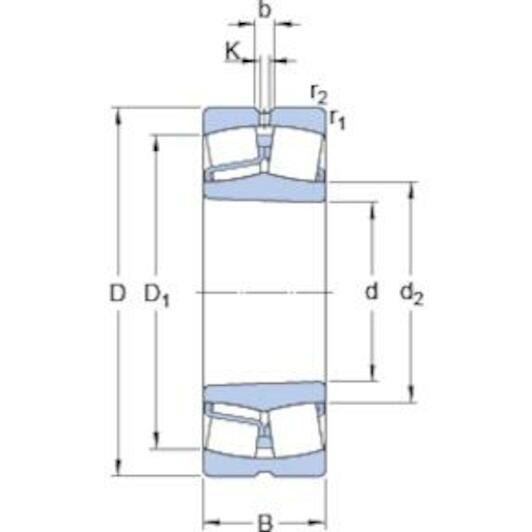

The bearing has an inside diameter of 90 mm, an outside diameter of 160 mm, and a width of 40 mm.

What does the C3 radial internal clearance indicate?

C3 denotes a radial internal clearance greater than normal, ideal for thermal expansion and high operating temperatures.

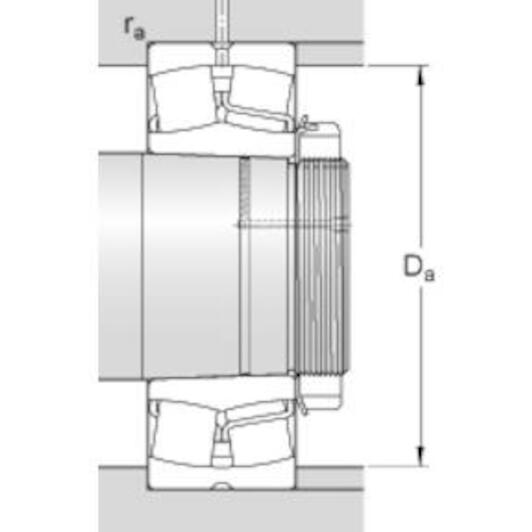

How do you mount a bearing with a tapered bore?

The tapered bore (designated with K) mounts directly onto a tapered shaft seat or by using a compatible adapter sleeve.

Is this SKF bearing sealed?

No, this is an open bearing without integrated seals, designed with relubrication features.

Can this bearing accommodate misalignment?

Yes, the double-row spherical roller design makes it self-aligning and capable of handling heavy radial and axial loads.

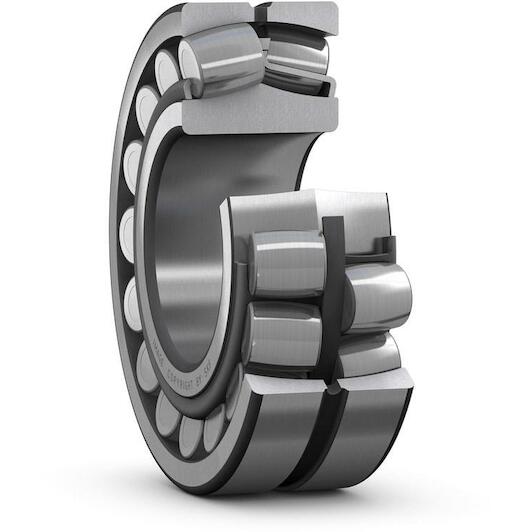

SKF 22218 EK/C3 spherical roller bearing tapered roller 90 x 160 x 40 mm

Supplier number: SKF 22218 EK/C3 | EAN 7316570956351

Recommended Retail Price €676.67

334.95 tax incl.

€276.82 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load support by Skf

Practical benefits

High radial load capacity: The two rows of barrel rollers reliably handle heavy radial and axial forces across demanding industrial machinery.
Self-aligning under shaft deflection: You accommodate misalignments and shaft deflections smoothly without increasing operating friction or excessive heat.
Easy and quick relubrication: Integrated lubrication features let you maintain proper grease distribution effortlessly to extend the bearing service life.

In a nutshell

The right choise for

Keep your heavy industrial machinery running reliably with the Skf 22218 EK/C3 double-row spherical roller bearing. Designed with two rows of barrel rollers, it effortlessly handles heavy simultaneous radial and bidirectional axial loads. Its self-aligning design smoothly accommodates shaft deflections and angular misalignments without increasing friction or operating temperatures. The tapered bore ensures secure, straightforward mounting directly on tapered shafts or using adapter sleeves. Featuring C3 internal radial clearance, this bearing compensates for thermal expansion during high-speed continuous operation. Integrated lubrication grooves and holes make relubrication quick and simple, helping you extend machine service life and minimize downtime.

Product information FAQ

€334.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 90 mm
Width: 40 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 160 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 90 mm
Width: 40 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 160 mm
Reference speed: 3800
Basic static load rating: 375
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: C3
Basic dynamic load rating: 331
Sealing: Without
Limiting speed: 5300
Bore diameter: 90
Outer diameter: 160
Tolerance class for dimensions: Normal

Brand SKF
01090275
EAN 7316570956351
Supplier number SKF 22218 EK/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has an inside diameter of 90 mm, an outside diameter of 160 mm, and a width of 40 mm.
What does the C3 radial internal clearance indicate?: C3 denotes a radial internal clearance greater than normal, ideal for thermal expansion and high operating temperatures.
How do you mount a bearing with a tapered bore?: The tapered bore (designated with K) mounts directly onto a tapered shaft seat or by using a compatible adapter sleeve.
Is this SKF bearing sealed?: No, this is an open bearing without integrated seals, designed with relubrication features.
Can this bearing accommodate misalignment?: Yes, the double-row spherical roller design makes it self-aligning and capable of handling heavy radial and axial loads.
