SKF

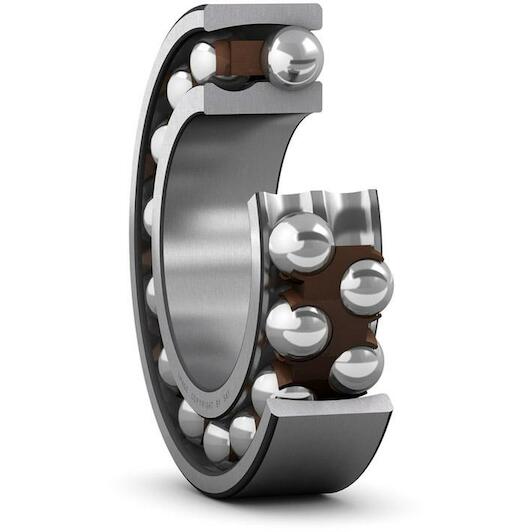

SKF 2206 EKTN9/C3 double-row self-aligning ball bearing tapered 30x62x20 mm

Recommended Retail Price €100.71
49.80 tax incl.
€41.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Delivery by DHL

Product description

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

  • Ease of mounting via adapter sleeves or withdrawal sleeves
  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 20 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Plastic
  • Bore type: Tapered
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570958775
  • Supplier number: SKF 2206 EKTN9/C3
Inner diameter
30 mm
Width
20 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Plastic
Bore type
Tapered
Outer diameter
62 mm
Basic static load rating
6.7
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
C3
Cage
Non-metallic
Relubrication feature
Without
Reference speed
22000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
15000
Bore diameter
30
Basic dynamic load rating
23.8
Outside diameter
62
