SKF

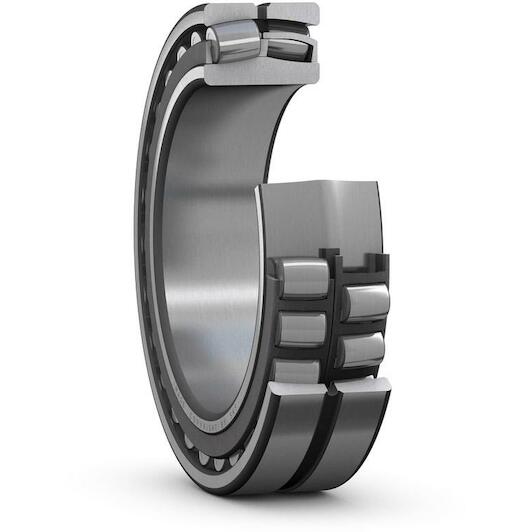

SKF 21305 CC spherical roller bearing cylindrical 25 x 62 x 17 mm

Recommended Retail Price €198.56
98.20 tax incl.
€81.16 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 17 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576651601
  • Supplier number: SKF 21305 CC
Inner diameter
25 mm
Width
17 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
62 mm
Reference speed
11000
Basic static load rating
41.5
Relubrication feature
Without
Tolerance class for run-out
P5
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Radial internal clearance
CN
Basic dynamic load rating
49.1
Sealing
Without
Limiting speed
15000
Bore diameter
25
Outside diameter
62
Tolerance class for dimensions
Normal
