SKF

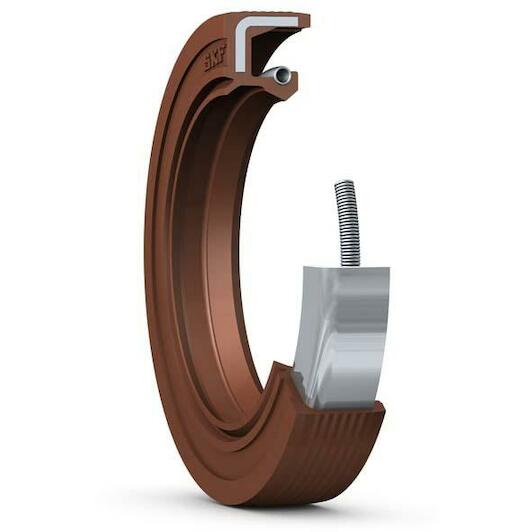

SKF 180X200X15 HMSA10 V radial shaft seal with rubber outer diameter and single sealing lip, for oil or grease

Recommended Retail Price €117.95
58.95 tax incl.
€48.72 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

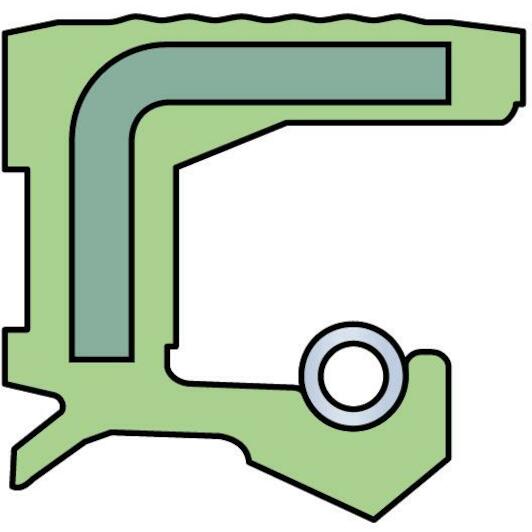

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodate misalignment
Key features according to our expert

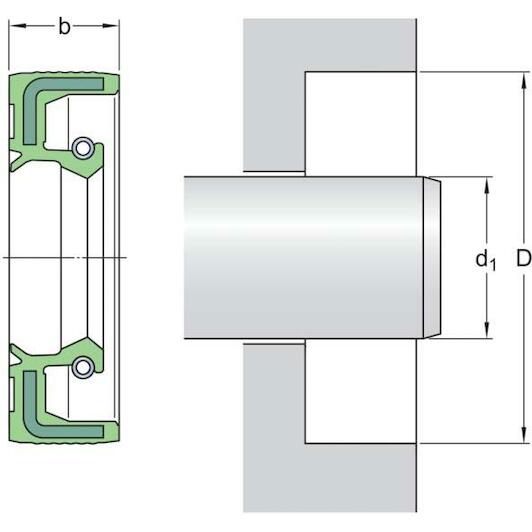

  • Inner diameter: 180 mm
  • Width: 15 mm
  • Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
  • With dust lip: Yes
  • Version (radial oil seal according to DIN 3760): AS
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316574850594
  • Supplier number: SKF 180X200X15 HMSA10 V
Inner diameter
180 mm
Width
15 mm
Material
FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip
Yes
Version (radial oil seal according to din 3760)
AS
Outer diameter
200 mm
Auxiliary lip
Yes
Minimum operating temperature
-25
Rotational speed
4020
Type of outside diameter
Rubber metal reinforced
Unit system
Metric
Seal width
15
Maximum operating temperature
200
Housing bore diameter
200
Limiting speed
4020
Design
HMSA10
Sealing lip material
Fluoro rubber (FKM)
Shaft diameter
180
Permissible circumferential speed
37.98
