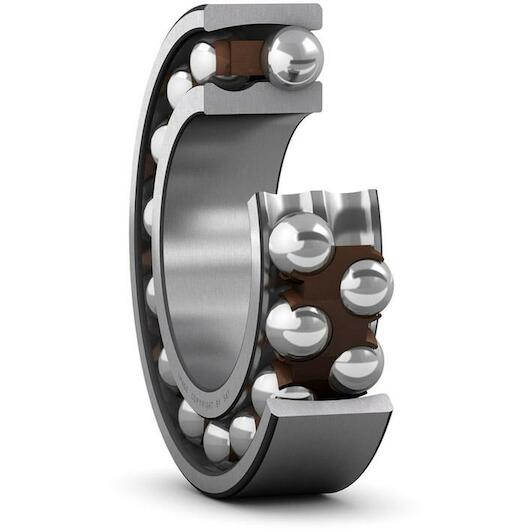

SKF 1210 ETN9 double-row self-aligning ball bearing cylindrical 50x90x20 mm

SKF
Supplier number: SKF 1210 ETN9 | EAN 7316576623479
Recommended Retail Price €133.50
65.95 tax incl.
€54.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€65.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Width: 20 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • Outer diameter: 90 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
50 mm
Width
20 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Plastic
Bore type
Cylindrical
Outer diameter
90 mm
Basic static load rating
9.15
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Non-metallic
Relubrication feature
Without
Reference speed
16000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
10000
Bore diameter
50
Basic dynamic load rating
26.5
Outer diameter
90
  • Brand SKF
  • EAN 7316576623479
  • Supplier number SKF 1210 ETN9
