What are the dimensions of this SKF ball bearing?

The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an 18 mm width.

What is the main benefit of a self-aligning ball bearing?

It accommodates angular misalignment and shaft deflections without increasing friction or wear.

What type of cage is used in the 1208 ETN9?

The TN9 designation indicates a cage made of glass-fibre reinforced polyamide (polymer).

Does this bearing come with built-in seals?

No, this is an open bearing without seals and requires external lubrication.

What bore type and internal clearance does this bearing have?

It has a cylindrical bore for direct mounting onto a 40 mm shaft and standard CN radial clearance.

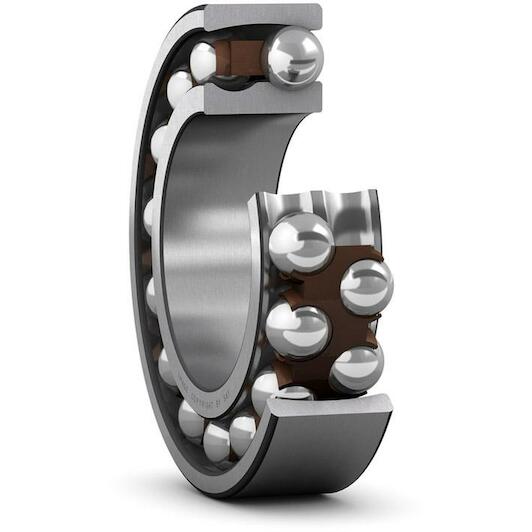

SKF 1208 ETN9 double-row self-aligning ball bearing cylindrical 40x80x18 mm

Supplier number: SKF 1208 ETN9 | EAN 7316576622274

Recommended Retail Price €106.89

52.80 tax incl.

€43.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 1208 ETN9

Practical benefits

Automatic compensation for misalignment: The double-row ball design accommodates shaft deflections effortlessly so you prevent unwanted stress on critical components.
Quiet lightweight polyamide cage: The durable polymer cage reduces operational noise and minimizes friction heat during high-speed continuous running.
Low operational running friction: You achieve efficient performance and reduce wear across your machinery thanks to the optimized spherical outer ring geometry.

In a nutshell

The right choise for

Keep your rotating machinery running smoothly and reliably with the Skf 1208 ETN9 double-row self-aligning ball bearing. Featuring two rows of balls and a sphered raceway, it automatically accommodates shaft deflections and angular misalignment without increasing friction or generating excess heat. The lightweight glass-fibre reinforced polyamide cage (TN9) ensures quiet operation during continuous high-speed runs and minimizes wear across critical components. Designed with a 40 mm cylindrical bore, an 80 mm outside diameter, and an 18 mm width, this open bearing is the ideal solution for conveyor rollers, gearboxes, and industrial drive systems.

Product information FAQ

€52.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 80 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 80 mm
Basic static load rating: 6.95
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 18000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 11000
Bore diameter: 40
Basic dynamic load rating: 19.9
Outer diameter: 80

Brand SKF
01030013
EAN 7316576622274
Supplier number SKF 1208 ETN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an 18 mm width.
What is the main benefit of a self-aligning ball bearing?: It accommodates angular misalignment and shaft deflections without increasing friction or wear.
What type of cage is used in the 1208 ETN9?: The TN9 designation indicates a cage made of glass-fibre reinforced polyamide (polymer).
Does this bearing come with built-in seals?: No, this is an open bearing without seals and requires external lubrication.
What bore type and internal clearance does this bearing have?: It has a cylindrical bore for direct mounting onto a 40 mm shaft and standard CN radial clearance.
