What are the dimensions of this SKF bearing?

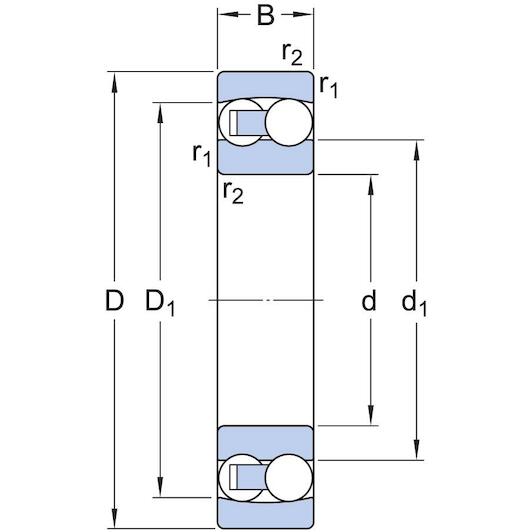

The bearing has a 20 mm bore diameter, a 47 mm outside diameter, and a width of 14 mm.

What is the main advantage of a self-aligning ball bearing?

With two rows of balls and a sphered outer raceway, it easily accommodates angular misalignment and shaft deflection.

What cage material does the TN9 suffix designate?

The TN9 designation indicates a cage made of glass-fibre reinforced polyamide (plastic).

Does this ball bearing have seals?

No, this is an open bearing without seals, intended for applications with external lubrication.

What type of bore does the 1204 ETN9 have?

It features a standard cylindrical bore designed to fit directly onto a 20 mm cylindrical shaft.

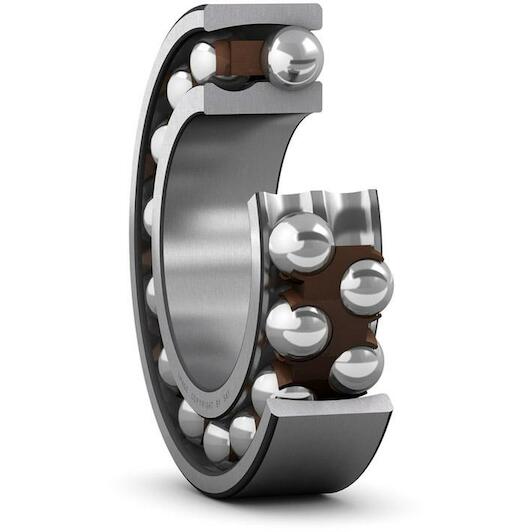

SKF 1204 ETN9 double-row self-aligning ball bearing cylindrical 20x47x14 mm

Supplier number: SKF 1204 ETN9 | EAN 7316576620485

Recommended Retail Price €80.66

39.80 tax incl.

€32.89 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable alignment under shaft deflection

Practical benefits

Automatic compensation for angular misalignment: You prevent mechanical stress as the two rows of balls adapt smoothly to shaft deflections and mounting inaccuracies.
Low friction at high speeds: With the lightweight polyamide cage, you experience reduced heat build-up and exceptionally smooth, quiet running performance.
Direct fit on cylindrical shafts: You install this bearing quickly on standard 20 mm shafts, ensuring a secure and straightforward mechanical fit.

In a nutshell

The right choise for

With the Skf 1204 ETN9 double-row self-aligning ball bearing, you prevent mechanical stress and premature failure caused by shaft deflection or mounting misalignment. Its two rows of balls and sphered outer raceway adapt smoothly to angular deviations, ensuring consistent, reliable rotation. Thanks to the lightweight polyamide cage, you benefit from low friction, reduced heat build-up, and quiet operation at high speeds. Designed with a 20 mm cylindrical bore, a 47 mm outside diameter, and a 14 mm width, this open bearing mounts quickly and accurately onto standard cylindrical shafts in industrial machinery, conveyor systems, and agricultural equipment with external lubrication setups.

Product information FAQ

€39.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 47 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 47 mm
Basic static load rating: 3.4
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 32000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 20000
Bore diameter: 20
Basic dynamic load rating: 12.7
Outer diameter: 47

Brand SKF
01030005
EAN 7316576620485
Supplier number SKF 1204 ETN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 20 mm bore diameter, a 47 mm outside diameter, and a width of 14 mm.
What is the main advantage of a self-aligning ball bearing?: With two rows of balls and a sphered outer raceway, it easily accommodates angular misalignment and shaft deflection.
What cage material does the TN9 suffix designate?: The TN9 designation indicates a cage made of glass-fibre reinforced polyamide (plastic).
Does this ball bearing have seals?: No, this is an open bearing without seals, intended for applications with external lubrication.
What type of bore does the 1204 ETN9 have?: It features a standard cylindrical bore designed to fit directly onto a 20 mm cylindrical shaft.
