Product Description:

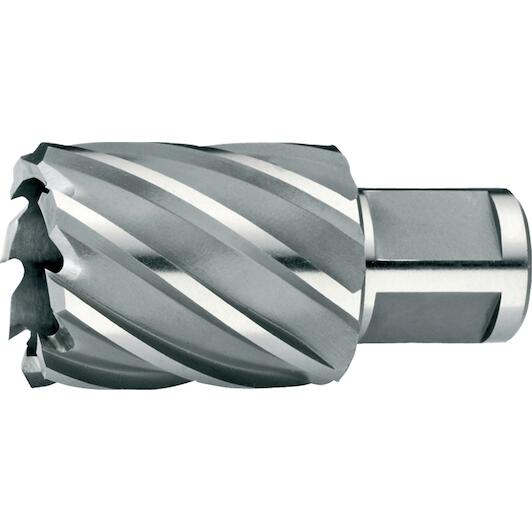

- Phantom HSS Annular Cutter cutting depth 30 mm
- Short series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621003500
|
EAN
8716563237334
64.38
tax incl.
€53.21 excl. VAT (incl. all environmental contributions)
Accurate core drilling in metals
Practical benefits- Durable HSS-EX steel construction: You achieve extended tool life and high heat resistance during intensive drilling tasks.
- Standard Weldon 19 mm shank: You ensure a stable, slip-free fit in compatible magnetic drilling units.
- Reliable Phantom performance: You cut smoothly up to 30 mm depth through steel, cast iron, copper, and plastics.
In a nutshell
The right choise forDrill large-diameter holes quickly and accurately through metal with the Phantom 62100 hss-ex 35 mm annular cutter. Because it cuts only the outer periphery instead of machining the entire hole volume, you save time and reduce cutting load on your magnetic drilling unit without pre-drilling. The durable hss-ex tool steel provides high heat resistance and wear resistance for extended tool life in steel, cast iron, aluminium, copper, and plastics. The flat 19 mm Weldon shank guarantees a firm, slip-free fit in the chuck. With a cutting depth of 30 mm, you achieve clean and efficient holes for fabrication, workshop, and structural tasks.
Product information
Key features according to our expert
- Diameter: 35 mm
- Connection profile: Weldon
- For material: Metal; Cast iron; Aluminium; Copper; Plastic

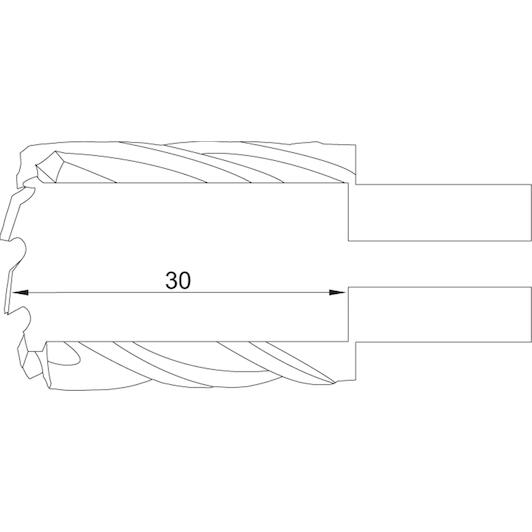

- Cutting length: 30 mm
All Features
- Diameter
- 35 mm
- Connection profile
- Weldon
- For material
- Metal; Cast iron; Aluminium; Copper; Plastic
- Cutting length
- 30 mm
- Surface
- Bright
- Drill diameter (d1)
- 35 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11
- Cutting depth (ap)
- 30 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563237334
- Supplier number PHANTOM 621003500
Frequently asked questions about this product
Answered by specialists
- What are the diameter and cutting depth of this annular cutter?
- This Phantom annular cutter has a 35 mm diameter and a maximum cutting depth of 30 mm.
- What type of shank does this core drill have?
- It features a standard 19.05 mm (3/4") Weldon shank suitable for magnetic drilling machines.
- Which materials can you machine with this HSS-EX cutter?
- It is suitable for metal, steel, cast iron, aluminium, copper, and various plastics.
- What is the advantage of HSS-EX tool steel?
- HSS-EX provides superior hot hardness and wear resistance, resulting in a longer tool life.
- Do you need a pilot pin when drilling?
- Yes, a matching ejector pin ensures accurate alignment and enables internal coolant flow.
