Product Description:

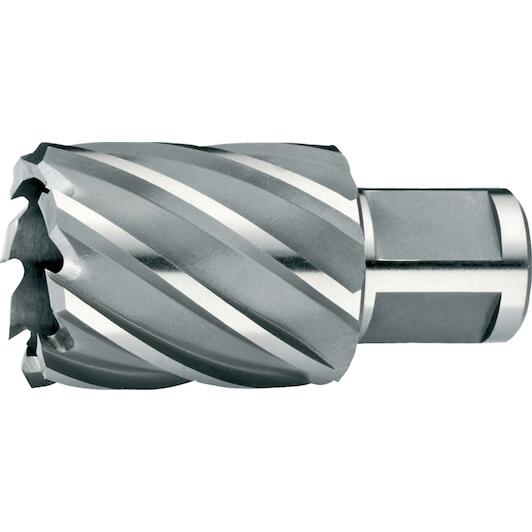

- Phantom HSS Annular Cutter cutting depth 30 mm
- Short series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621002600
|
EAN
8716563237242
46.52
tax incl.
€38.45 excl. VAT (incl. all environmental contributions)
Clean drilling with Phantom
Practical benefits- Superior HSS-EX heat resistance: You cut smoothly through metal, cast iron, and aluminum with high wear resistance and extended service life.
- Secure and reliable clamping: The WELDON-19 shank ensures slip-free torque transfer and maximum stability during heavy-duty drilling operations.
- Fast and precise cutting: With a 30 mm cutting depth, you efficiently create clean 26 mm holes with minimal effort.
In a nutshell
The right choise forWith the Phantom 621002600 hss-ex core drill bit, you drill clean and precise 26 mm holes through metal, cast iron, aluminium, copper, and plastic. Because only the outer ring is cut, you work faster and use significantly less energy than with a standard twist drill, eliminating the need for pilot drilling. The premium hss-ex construction delivers high heat and wear resistance for an extended working life. Thanks to the standard WELDON-19 shank, you achieve a secure, slip-free fit in your magnetic drilling machine. With a 30 mm cutting depth, you efficiently produce burr-free through-holes in thick-walled structural steel and profiles.
Product information
Key features according to our expert
- Diameter: 26 mm
- Connection profile: Weldon
- For material: Metal; Cast iron; Aluminium; Copper; Plastic

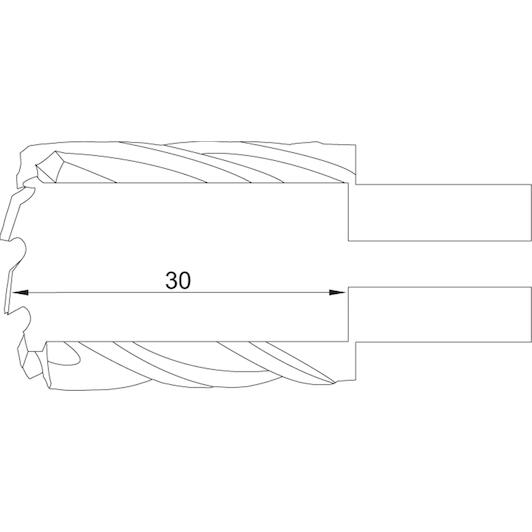

- Cutting length: 30 mm
All Features
- Diameter
- 26 mm
- Connection profile
- Weldon
- For material
- Metal; Cast iron; Aluminium; Copper; Plastic
- Cutting length
- 30 mm
- Surface
- Bright
- Drill diameter (d1)
- 26 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11
- Cutting depth (ap)
- 30 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563237242
- Supplier number PHANTOM 621002600
Frequently asked questions about this product
Answered by specialists
- What are the diameter and cutting depth of this core drill bit?
- This core drill bit has a drilling diameter of 26 mm and a cutting depth of 30 mm.
- What type of shank does this core drill bit have?
- It features a standard Weldon-19 shank (19.05 mm / 3/4"), suitable for magnetic drilling machines with a Weldon fitting.
- Which materials can this HSS-EX core drill bit be used on?
- It is suitable for drilling in metal, cast iron, aluminium, copper, and plastic.
- What are the benefits of HSS-EX steel?
- HSS-EX steel provides enhanced toughness and wear resistance, ensuring a longer tool life and clean cuts.
- Do you need a pilot pin with this core drill?
- Yes, a matching pilot pin is required for centering, internal coolant delivery, and core ejection.
