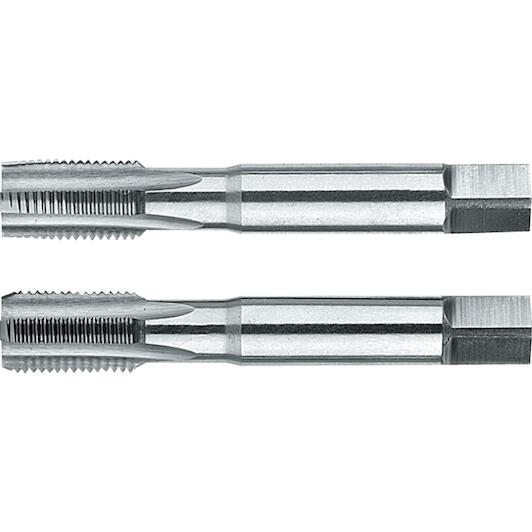

PHANTOM 214004191 HSS hand tap ISO 529 BSP (gas thread), 1.1/4"-11 (2 pcs)

Show more features

For thread size*

1 1/4 inch

Pitch

11 tpi

Quantity per set

2

Thread type

BSPP

Tolerance d1 (tol. d1)

2B

Pre-drilling diameter (ø)

39,5 mm

Total length (l1)

119 mm

Tool material

HSS

Flute length (l2)

39 mm

Thread diameter (d1)

G 1.1/4

Square wide (sw)

25,5 mm

Cutting direction

Right

Surface

Bright

Shank ø (d2)

31,5 mm

Shank type

Straight shank with square

Norms

ISO 529

Pitch-inch (tpi)

11 Threads per inch
