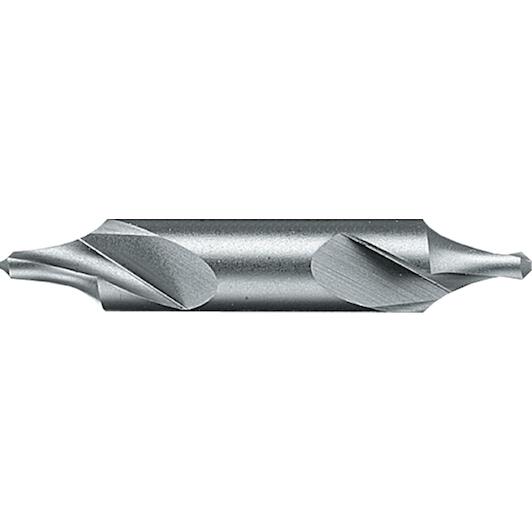

PHANTOM 152501650 HSS centre drill bit DIN 333-R with radius' 60° 1'6x5 mm

10.35 tax incl.
€8.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product Description:

  • Phantom HSS Centre Drill DIN 333-R radius form 60°
  • DIN 333-R, the radius strengthens the point and protects the bore that has been countersunk by the radius. The radius also guarantees accurate centring
Key features according to our expert
  • Diameter: 1,6 mm
  • Point angle: 60 °
  • Overall length: 40 mm
  • Shank size: 5 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563329602
  • Supplier number: PHANTOM 152501650
Diameter
1,6 mm
Point angle
60 °
Overall length
40 mm
Shank size
5 mm
Radius (r)
5 mm
Total length (l1)
40 mm
Tool material
HSS
Drill diameter (d1)
1,6 mm
Tolerance d2 (tol. d2)
h7
Coolant feed
No
Flute length from till (l2)
4,5-4,9 mm
Cutting direction
Right
Tolerance d1 (tol. d1)
k12
Surface
Bright
Shank ø (d2)
5 mm
Point type
Relieved cone
Shank type
Straight shank
Shape
R
Norms
DIN 333-R
