Product Description:

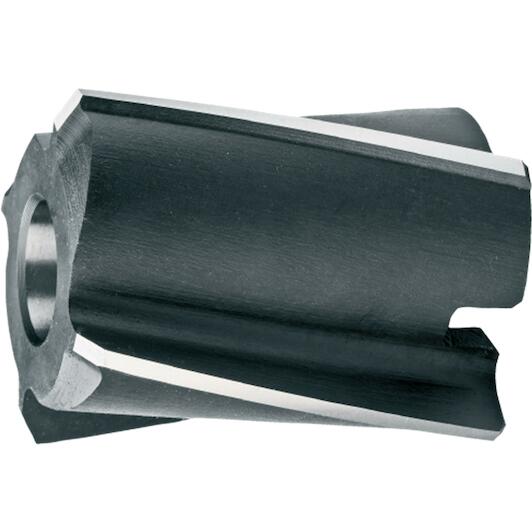

- Phantom HSS Shell Core Drill DIN 222
- DIN 222
Supplier number:
PHANTOM 133504360
|
EAN
8716563312185
360.18
tax incl.
€297.67 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 43,6 mm
- Cutting length: 50 mm
- Bore size: 16 mm
All Features
- Diameter
- 43,6 mm
- Cutting length
- 50 mm
- Bore size
- 16 mm

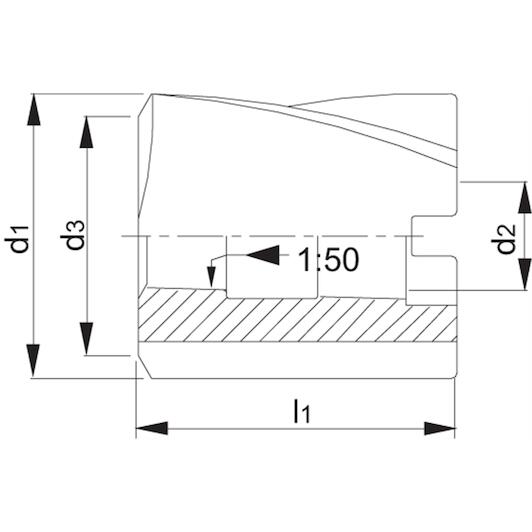

- Total length (l1)
- 50 mm
- Tool material
- HSS
- Drill diameter (d1)
- 43,6 mm
- Coolant feed
- No
- Min. pre-drilling diameter (d3)
- 39 mm
- Cutting direction
- Right
- Spiral type
- Type N
- Bore ø (d2)
- 16 mm
- Tolerance d1 (tol. d1)
- h8
- Shank type
- Bore
- Standard
- DIN 222
- Point angle
- 120°
- Brand PHANTOM
- EAN 8716563312185
- Supplier number PHANTOM 133504360
