Product description

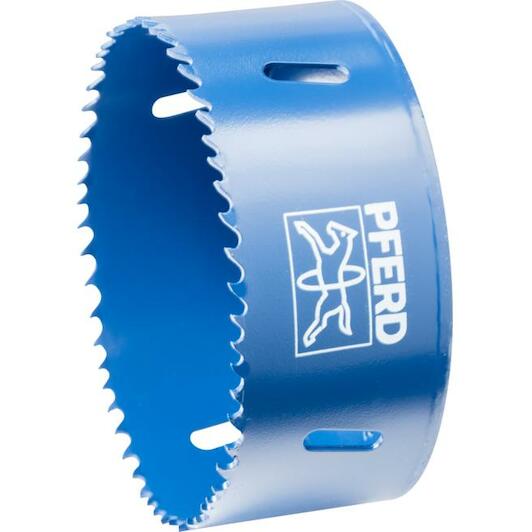

- PFERD Bimetal hole saw Co8/M42 dia. 98 mm cutting depth 31 mm for steel, stainless steel, sheet metal, wood
Characteristics
- Hole saws are made from tough, shatter-proof, sturdy HSS bimetal
- The saw teeth are made from high-quality M42 (Co8) material
- They are used for cutting out holes
- The thread version 5/8-18 UNF includes the thread LS 32 to LS 210
- The matching hole saw arbor is LSS 2
Advantages:
- Cost-effective sawing of round cut-outs.
- Chattering during sawing is prevented by the alternating tooth pitch.
- High concentricity.
- Good chip removal.
- The hole saw is conveniently centred and guided via the replaceable HSS pilot drill.
- Hole saw arbor is supplied with an ejection spring for improved ejection of the sawn material.
Key features according to our expert
-
Diameter (hole saw): 98 mm; 3 7/8 inch
-
Overall length: 48 mm
-
Connection size: 1/2"
-
Max. cutting depth: 1 1/4 inch
-
Connection type: Inner thread
Specifications / All features
-
Brand:
PFERD
-
55010341
-
EAN:
4007220319208
-
Supplier number:
PFERD 25102898
- Diameter (hole saw)
- 98 mm; 3 7/8 inch
- Overall length
- 48 mm
- Connection size
- 1/2"
- Max. cutting depth
- 1 1/4 inch
- Connection type
- Inner thread
- Workable materials 1
- Brass
- Processing tasks
- Obtaining cut-outs
- Workable materials 12
- Stainless steel (INOX)
- Workable materials 16
- Steel up to 700 N/mm² (< 220 HB)
- Processing tasks 1
- Drill
- ø outside metric
- 98
- Workable materials 14
- Steel, cast steel
- Workable materials 3
- Chipboard
- Workable materials 5
- Non-ferrous metal hard
- Workable materials 10
- Non-ferrous metal soft
- Rpm of, soft non-ferrous metals
- 120
- Rpm of, stainless and acid-resistant steels
- 45
- Rpm of, steels up to 1,200 n/mm²
- 90
- Cutting depth, max.
- 31
- Workable materials 7
- Other non-ferrous metals
- Workable materials 8
- Plastics
- Workable materials 9
- Aluminium alloys soft
- Workable materials 6
- hard wood
- Workable materials
- Aluminium
- Workable materials 2
- Bronze
- Workable materials 4
- Copper
- Workable materials 18
- Wood
- Workable materials 11
- soft wood
- Workable materials 15
- Steel up to 1,200 N/mm² (< 38 HRC)
- Workable materials 19
- Zinc
- Workable materials 17
- Aluminium alloys tough
- Workable materials 13
- Steel
- Rpm of, thermoplastics, fibre-reinforced plastics (grp/cfk)
- 140
