What diameter and cutting depth does this hole saw have?

This hole saw has a diameter of 19 mm and a maximum cutting depth of 36 mm.

Which materials can you cut with the LS 19?

It is suitable for steel, stainless steel, sheet metal, aluminum, non-ferrous metals, plastics, and wood.

What thread connection does this hole saw use?

It features a 1/2" (1/2-20 UNF) female thread designed for compatible arbors.

Which arbor fits this hole saw?

You can use an arbor with a 1/2-20 UNF thread, such as the Pferd LSS 1 or LSS 4.

What material are the cutting teeth made of?

The teeth are made of HSS M42 bi-metal with 8% cobalt (Co8) for high wear resistance.

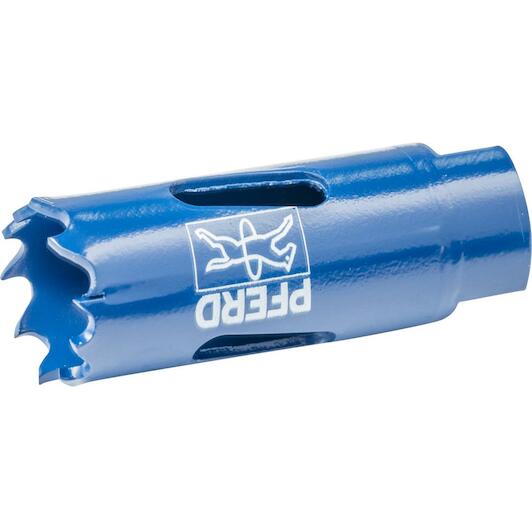

PFERD 25100119 bi-metal holesaw Co8/M42 Ø 19 mm cutting depth 36 mm for steel, stainless steel, sheet metal, wood

Name: PFERD 25100119 bi-metal holesaw Co8/M42 Ø 19 mm cutting depth 36 mm for steel, stainless steel, sheet metal, wood
Brand: PFERD
SKU: 55010303
Price: 21.09 EUR
Availability: InStock

Supplier number: PFERD 25100119 | EAN 4007220062326

21.09 tax incl.

€17.43 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Delivery by DHL

✆ Talk to a specialist

Clean cutouts with the LS 19

Practical benefits

High wear resistance in steel: The tough HSS-BIM Co8 construction ensures you cut reliably through stainless steel, sheet metal, and wood.
Smooth cuts without vibration: An alternating tooth pitch provides efficient chip removal, so you achieve clean 19 mm circular openings every time.
Capable 36 mm cutting depth: With a cutting depth of 36 mm, you tackle thick metals, plastics, and composite materials with ease.

In a nutshell

The right choise for

With the Pferd ls 19 bi-metal hole saw, you create clean 19 mm circular openings with precision and ease. Built with hss-bim Co8 teeth containing 8% cobalt, it delivers outstanding wear resistance when cutting tough materials such as stainless steel, steel, sheet metal, aluminum, and wood. The alternating tooth pitch ensures smooth chip removal, allowing you to cut cleanly without vibrations. With a cutting depth of 36 mm, it effortlessly handles thicker workpieces and panels. Its 1/2" female thread connects securely to compatible arbors like the lss 1 or lss 4, giving you complete control on every installation job.

Product information FAQ

€21.09

In stock - tax incl.

Key features according to our expert

Diameter (hole saw): 19 mm; 3/4 inch
Overall length: 48 mm
Connection size: 1/2"
Max. cutting depth: 1 7/16 inch
Connection type: Internal thread

Product description

PFERD Bimetal hole saw Co8/M42 dia. 19 mm cutting depth 36 mm for steel, stainless steel, sheet metal, wood

Characteristics

Hole saws are made from tough, shatter-proof, sturdy HSS bimetal
The saw teeth are made from high-quality M42 (Co8) material
They are used for cutting out holes
The thread version 1/2-20 UNF includes the thread LS 14 to LS 30
Matching hole saw arbors are LSS 1 and LSS 4

Advantages:

Cost-effective sawing of round cut-outs.
Chattering during sawing is prevented by the alternating tooth pitch.
High concentricity.
Good chip removal.
The hole saw is conveniently centred and guided via the replaceable HSS pilot drill.
Hole saw arbor is supplied with an ejection spring for improved ejection of the sawn material.

All Features

Diameter (hole saw): 19 mm; 3/4 inch
Overall length: 48 mm
Connection size: 1/2"
Max. cutting depth: 1 7/16 inch
Connection type: Internal thread
Processing tasks: Obtaining cut-outs
Rpm of, soft non-ferrous metals: 600
Rpm of, steels up to 1,200 n/mm²: 460
Cutting depth, max.: 36
Rpm of, thermoplastics, fibre-reinforced plastics (grp/cfk): 740
Rpm of, stainless and acid-resistant steels: 230
Workable materials: Aluminium

Brand PFERD
55010303
EAN 4007220062326
Supplier number PFERD 25100119

Frequently asked questions about this product

Answered by specialists

What diameter and cutting depth does this hole saw have?: This hole saw has a diameter of 19 mm and a maximum cutting depth of 36 mm.
Which materials can you cut with the LS 19?: It is suitable for steel, stainless steel, sheet metal, aluminum, non-ferrous metals, plastics, and wood.
What thread connection does this hole saw use?: It features a 1/2" (1/2-20 UNF) female thread designed for compatible arbors.
Which arbor fits this hole saw?: You can use an arbor with a 1/2-20 UNF thread, such as the Pferd LSS 1 or LSS 4.
What material are the cutting teeth made of?: The teeth are made of HSS M42 bi-metal with 8% cobalt (Co8) for high wear resistance.
