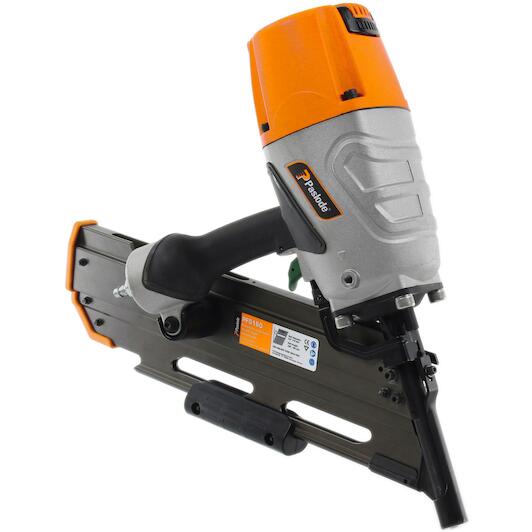

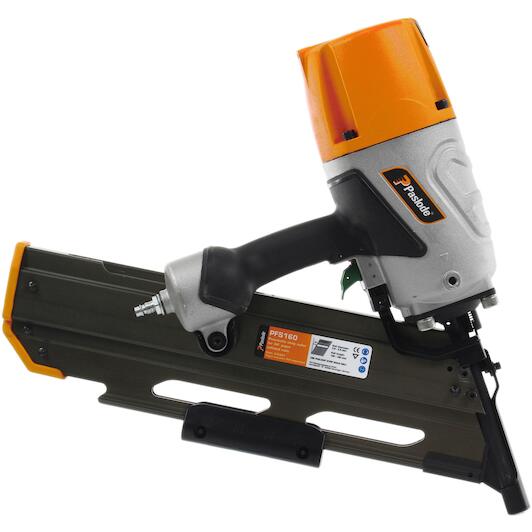

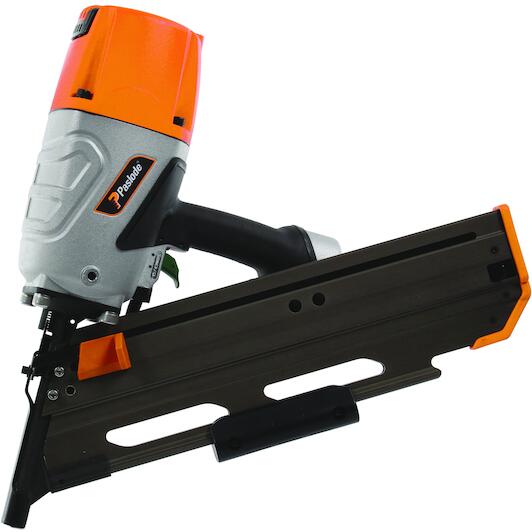

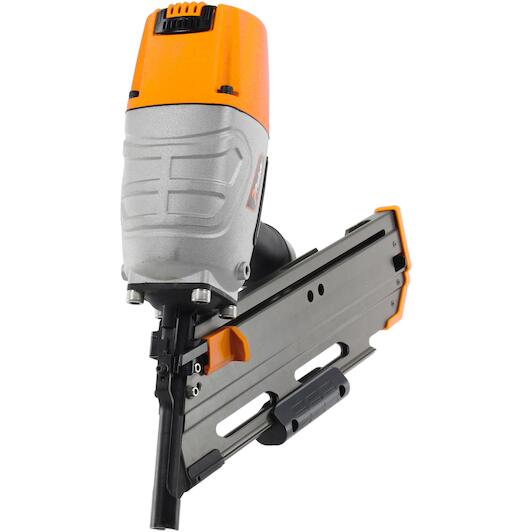

PASLODE PFS160 pneumatic nailer for 34° paper bonded strip nails (110-160 mm) - 576867

Name: PASLODE PFS160 pneumatic nailer for 34° paper bonded strip nails (110-160 mm) - 576867
Brand: PASLODE
SKU: 02838979
Price: 1963.8 EUR
Availability: PreOrder

Supplier number: PASLODE 576867 | EAN 4022907768674

1,963.80 tax incl.

€1,622.98 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

Delivery by DHL

✆ Talk to a specialist

Heavy framing with the Paslode PFS160

Practical benefits

Drive heavy framing fasteners: Operating at up to 8,3 bar, you drive strip nails up to 160 mm into dense structural timber.
Clean and debris-free site: The paper-laminated collation prevents flying plastic residue, while sequential triggering optimizes your overall work safety.
Exact depth with lockout: The adjustable depth control and dry-fire lockout protect your workpiece surface from accidental marking and damage.

In a nutshell

The right choise for

With the Paslode PFS160 pneumatic strip nailer, you effortlessly secure heavy timber framing, roof structures, and joists. Operating at up to 8.3 bar, it delivers the driving power needed to sink long 110 to 160 mm paper-collated strip nails deeply into dense structural wood, eliminating demanding manual hammering. The paper collation keeps your jobsite free from plastic debris, while the adjustable depth control and dry-fire lockout protect your timber from surface marks. With the included secondary handle and safe sequential actuation, you maintain complete control and accuracy on every build.

Product information FAQ

€1,963.80

tax incl.

Key features according to our expert

Min. nail length: 110 mm
Max. nail length: 160 mm
Max. working pressure: 8,3 bar

Scope of delivery

Strip nailer+ with grip (assembled)
2nd handle
Safety glasses
Allen spanner
Manual
Part drawing
Safety instructions
CE declaration of conformity
Pneumatic oil

Product description

Pneumatic nailer for 34° paper bonded strip nails from 110 to 160 mm
Powerful and easy-to-use strip nailer with low air consumption for nails up to 160 mm
No residual waste thanks to paper-bonded nailing system
Excellent balance & power-to-weight ratio for user comfort
Ergonomic rubber grip for comfortable and safe working
Adjustable depth setting for a perfect finish
Last-nail lock prevents empty shooting and prevents surface damage
Very robust design for a longer lifetime
Single-shot trigger for optimal work safety

Applications

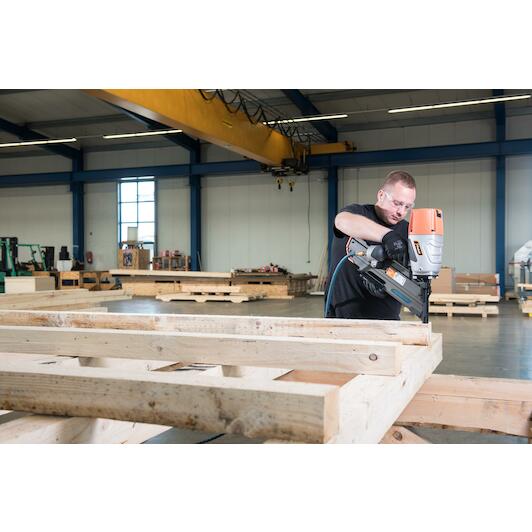

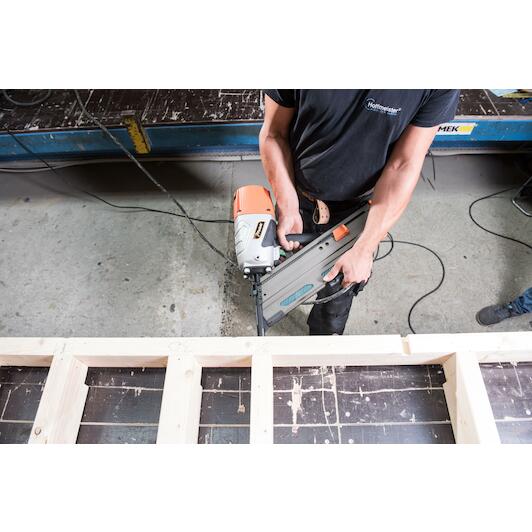

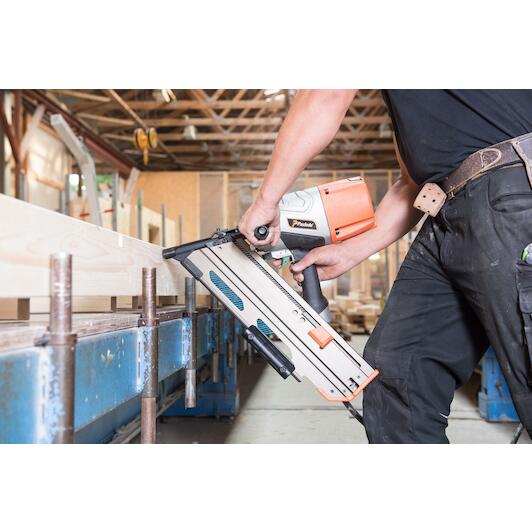

Timber frame construction
Roof trusses
Carpentry
Prefab wood applications
Packaging / export packaging

All Features

Min. nail length: 110 mm
Max. nail length: 160 mm
Max. working pressure: 8,3 bar
Type of connection: 34° paper tape
Number of degrees of nail connection: 34 °
Noise level (en 12549) lpa: 97.0 dB(A)
Nail length (mm): 110-160
Sound level (en 12549) lwa: 110 dB(A)
Type of fastening: Paslode strip nails
Energy: pneumatic
Anchorage tax: Top loader
Health and safety: Eye protection, Hearing protection
Anchor diameter range: 3.8 - 4.6 mm
Max. air pressure: 8.3 bar
Warehouse capacity: 56 nail
Minimum air pressure: 5.5 bar
Power: With the key
Base material: Wood
Vibration (en iso 8662-11) hav: 6.2 m/s²
Air consumption per shot: 3.84 l/shot at 6 bar
Sound level (en 12549) lpc: < 130 dB(C)
Operation: fully sequential

Brand PASLODE
02838979
EAN 4022907768674
Supplier number PASLODE 576867

Frequently asked questions about this product

Answered by specialists

Which nail lengths are compatible with this tool?: The Paslode PFS160 drives 34° paper-collated strip nails with lengths ranging from 110 to 160 mm.
What is the maximum operating pressure of the pneumatic nailer?: The maximum operating pressure is 8.3 bar. The minimum recommended operating pressure is 5.5 bar.
Does the nailer feature a dry fire lockout mechanism?: Yes, it includes a last-nail lockout to prevent blank firing and protect the work surface from damage.
What is included with the Paslode PFS160?: The package includes the strip nailer, a secondary handle, safety glasses, an Allen key, pneumatic oil, and documentation.
Which trigger actuation mode does the tool use?: The PFS160 uses full sequential trigger actuation to ensure optimal operating safety and precise placement.
