What are the measuring range and resolution of this indicator?

This digital indicator features a measuring range of 0 to 25.4 mm with a resolution of 0.01 mm and an accuracy of 0.02 mm.

Does the zero point need to be reset after powering off?

No, thanks to the integrated ABSOLUTE sensor, the set origin is retained even after turning off the device.

Does the dial indicator support data output?

Yes, it includes a Digimatic data output port to transfer measurement values to a computer or printer via an optional cable.

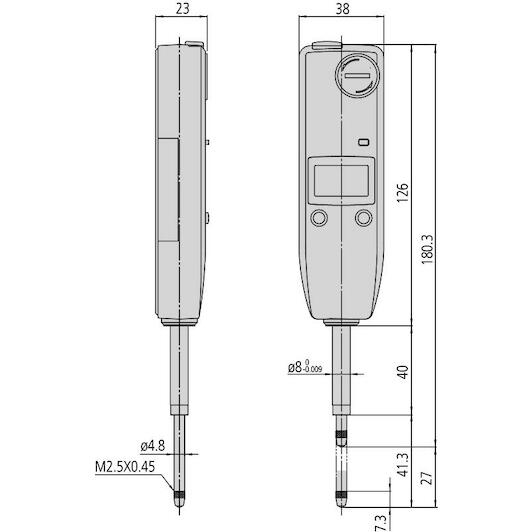

What are the stem diameter and contact point thread?

The mounting stem has a diameter of 8 mm, and the replaceable contact point features an M2.5 x 0.45 thread.

Which battery is required and what is the battery life?

The indicator is powered by 1 SR44 battery and delivers an operating life of 20,000 hours.

MITUTOYO 575-121 Digimatic dial indicator ID-U 0-25 mm/0.01 mm 25.4 mm, 0.01 mm

Name: MITUTOYO 575-121 Digimatic dial indicator ID-U 0-25 mm/0.01 mm 25.4 mm, 0.01 mm
Brand: MITUTOYO
SKU: 41010875
Price: 249.89 EUR
Availability: PreOrder

Supplier number: MITUTOYO 575-121 | EAN 4946368131276

249.89 tax incl.

€206.52 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Delivery by DHL

✆ Talk to a specialist

Precise results with Mitutoyo

Practical benefits

Ready for immediate measuring: The integrated sensor retains your origin point so you can start measuring immediately upon power-up.
Clear and accurate readings: You read measurements up to 25.4 MM with a 0.01 MM resolution clearly on the digital screen.
Easy integration in fixtures: Thanks to the slim design and flat back, you effortlessly mount this indicator in compact measuring jigs.

In a nutshell

The right choise for

With the Mitutoyo 575-121 abs Digimatic indicator, you perform precise dimensional inspections and runout tests without reading errors. Thanks to the integrated absolute sensor, your zero reference point is retained across power cycles, allowing you to start measuring immediately upon turning it on. The clear digital display provides accurate readings across the entire 25.4 mm measuring range with a fine 0.01 mm resolution. Featuring a slim body profile with a flat back and an 8 mm mounting stem, it fits seamlessly into tight measuring fixtures and machine setups. a built-in Digimatic data output allows for smooth data transfer.

Product information FAQ

€249.89

tax incl.

Key features according to our expert

Max. measuring value: 25,4 mm
Reading: 0,01 mm mm
Measuring range: 0-25,4 mm

Product description:

This is a slim model digital dial indicator with a 25mm range.
The ABSOLUTE Digimatic dial indicator ID-U offers you the following advantages:
- The ABSOLUTE sensor means you don't have to set the original setting every time you switch on, saving you time and aggravation.
- The compact design makes it ideal for installation in machine fixtures.
- Exceptional battery life.

All Features

Max. measuring value: 25,4 mm
Reading: 0,01 mm mm
Measuring range: 0-25,4 mm

Brand MITUTOYO
41010875
EAN 4946368131276
Supplier number MITUTOYO 575-121

Frequently asked questions about this product

Answered by specialists

What are the measuring range and resolution of this indicator?: This digital indicator features a measuring range of 0 to 25.4 mm with a resolution of 0.01 mm and an accuracy of 0.02 mm.
Does the zero point need to be reset after powering off?: No, thanks to the integrated ABSOLUTE sensor, the set origin is retained even after turning off the device.
Does the dial indicator support data output?: Yes, it includes a Digimatic data output port to transfer measurement values to a computer or printer via an optional cable.
What are the stem diameter and contact point thread?: The mounting stem has a diameter of 8 mm, and the replaceable contact point features an M2.5 x 0.45 thread.
Which battery is required and what is the battery life?: The indicator is powered by 1 SR44 battery and delivers an operating life of 20,000 hours.
