MILWAUKEE M12 3PLKIT-401P three-dimensional cordless laser green with 3x360° laser circles in PACKOUT case (1x 4.0Ah battery + charger) - 4933478960

MILWAUKEE
Supplier number: MILWAUKEE 4933478960 | EAN 4058546362423
Recommended Retail Price €1,200.10
894.10 tax incl.
€738.92 excl. VAT (incl. all environmental contributions)
On stock - immediately available
kit

  • Delivery by DHL
✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

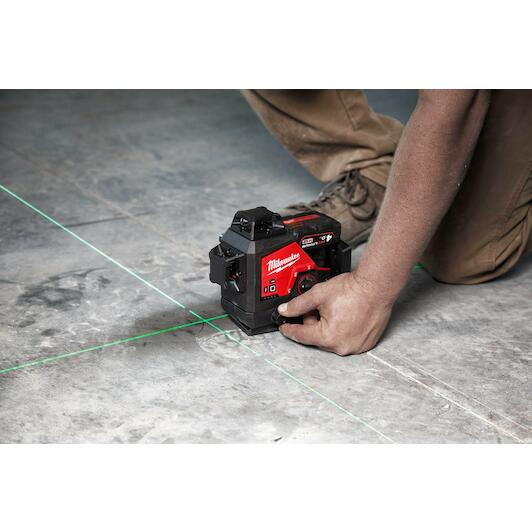

Milwaukee three-dimensional laser for full room layout

Practical benefits
  • Bright green 360-degree lines: One horizontal and two vertical lines allow you to level, align, and square entire rooms easily with visibility up to 38 metres.
  • Precise self-levelling pendulum system: You achieve exact results with 0.3 mm/m accuracy while the pendulum self-levels within four degrees for fast setup.
  • Complete kit for tough jobsites: You receive a versatile tripod, laser receiver, 4.0Ah battery, and a durable PACKOUT case ready for daily professional use.

In a nutshell

The right choise for

With the Milwaukee M12 3PLKIT-401P multi-line laser, you can align entire rooms quickly and accurately. This three-dimensional laser projects three bright green 360° planes, allowing you to level, plumb, and square large spaces without repositioning the tool. The high-visibility green beams offer a working range of up to 38 M, extending up to 100 M using the included LLD50 detector. Its self-levelling pendulum system adjusts within 4° with a 0.3 MM/M accuracy. Supplied with an M12 4.0Ah battery, charger, TRP120 tripod, LM360 bracket, and a durable Packout case, this IP54 rated kit gives you complete control on every jobsite.



Product information Accessories FAQ
€894.10
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Packout
  • Max. range: 38 m
  • With tripod: Yes
  • Tripod thread: 1/4"; 5/8"
  • Self-levelling range: 4,0000 °
  • Weight: 1,1 kg

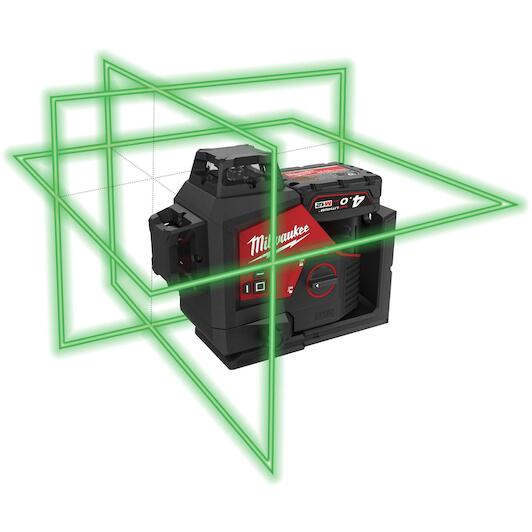

  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Supplied in: System case
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Protection class IP: IP54
  • Max. range with receiver: 100 m
  • Product Range: Milwaukee Packout

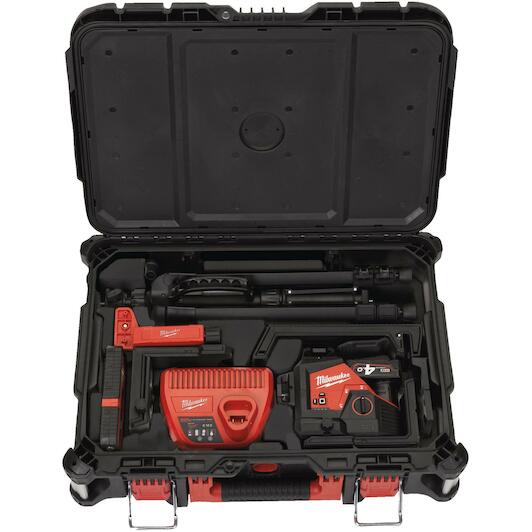

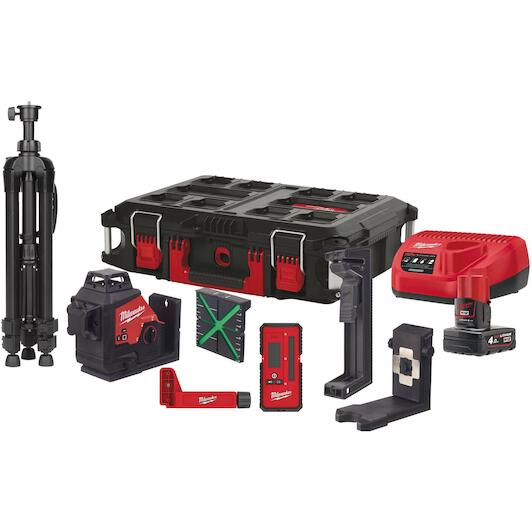

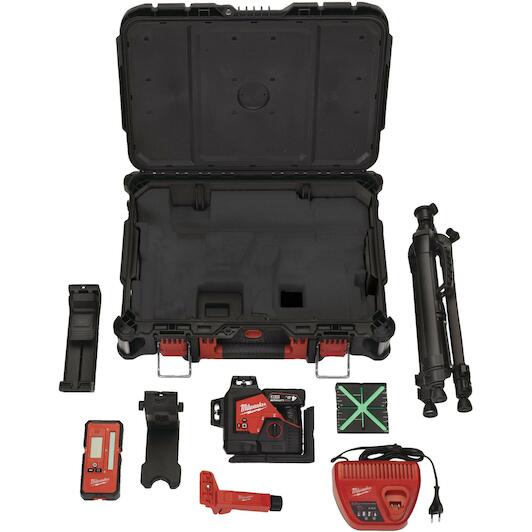

Scope of delivery

  • 1 x M12 B4 battery pack
  • C12 C Charger

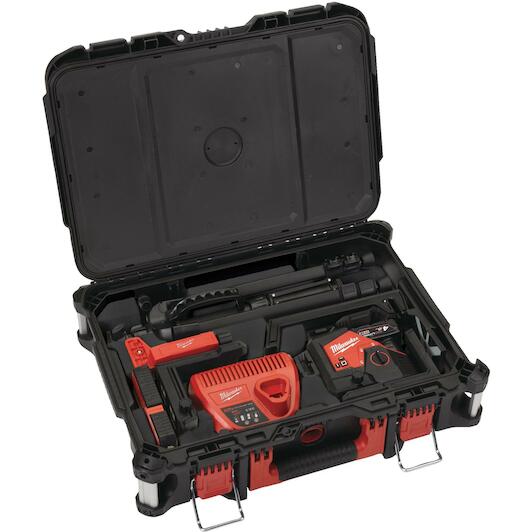

  • PACKOUT tool case
  • HI-VIST high visibility target plate
  • LLD50 line laser detector 50m
  • LM360 laser mount 360°
  • TRP120 compact laser tripod extendable to 1.2m
  • Track Clip

Product description

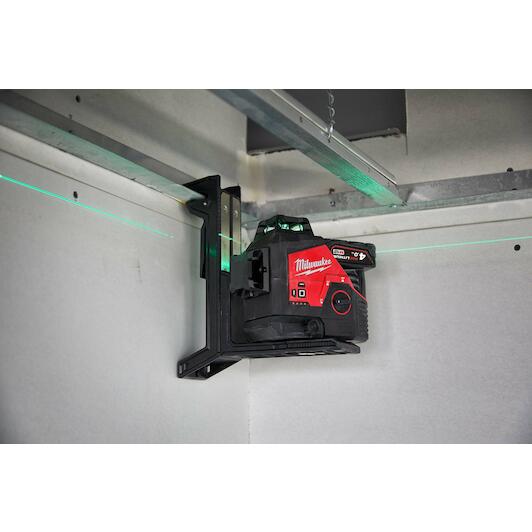

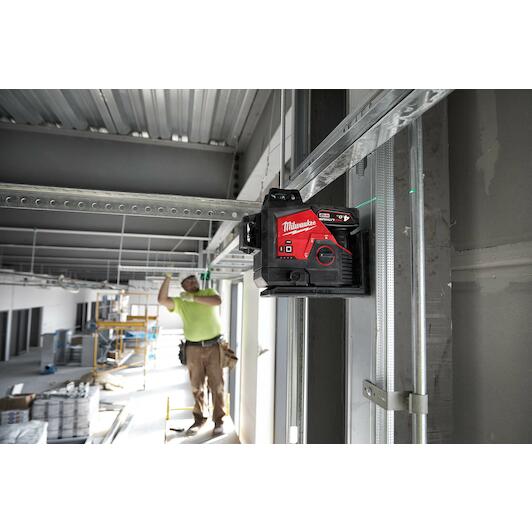

  • M12 green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool

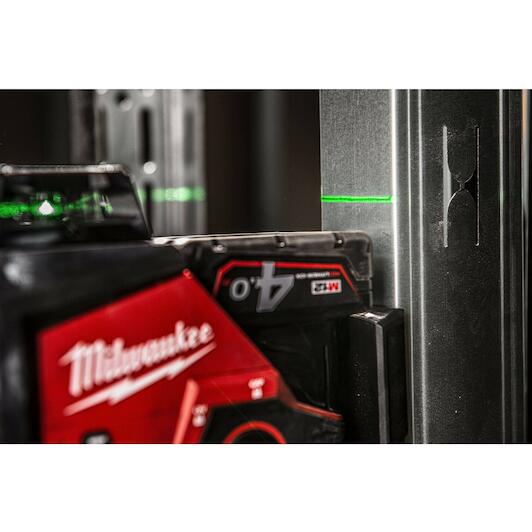

  • High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers
  • High intensity green beams provide a working range of 38 m and up to 100 m with a detector
  • Provides all-day run time of 15+ hours with an M12 B4 battery pack
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

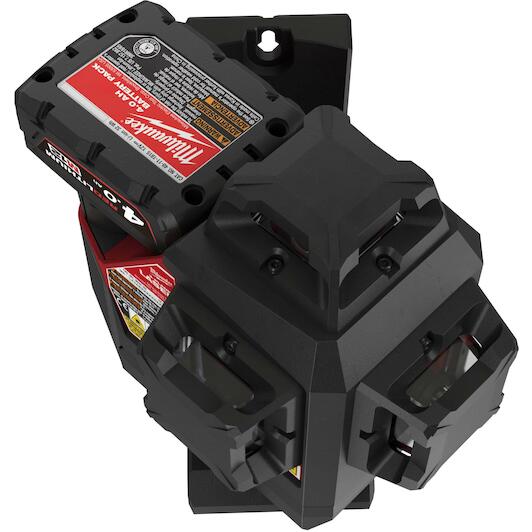

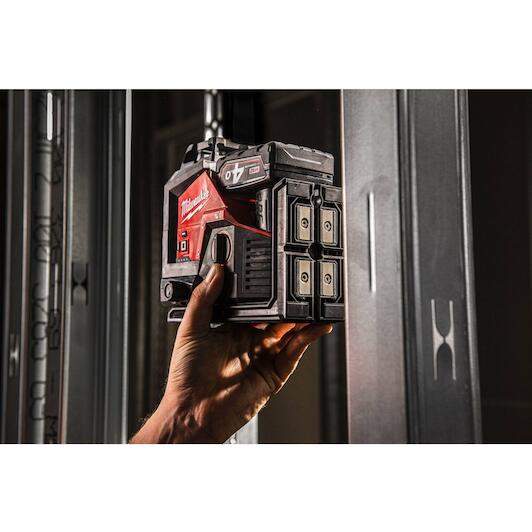

  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod

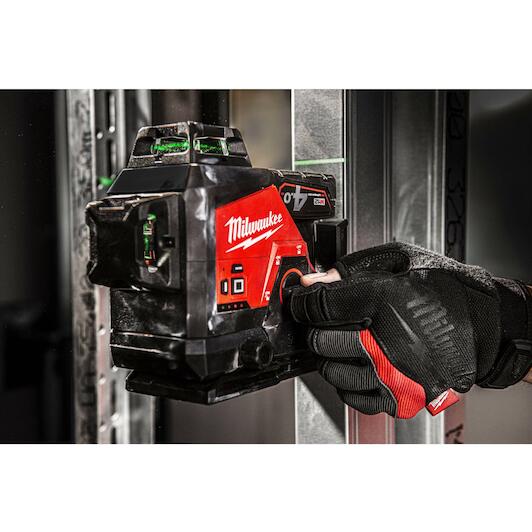

  • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
  • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
  • Flexible battery system: works with all MILWAUKEE M12batteries

All Features

Laser type
Cross line laser
Type of system case
Packout
Max. range
38 m
With tripod
Yes
Tripod thread
1/4"; 5/8"
Self-levelling range
4,0000 °
Weight
1,1 kg
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Supplied in
System case
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Protection class ip
IP54
Max. range with receiver
100 m
Self-levelling time (sec)
3
Colour of laser
Green
Laser classification
Class 2
Max. working time with m12 b4 battery (hours)
15
Self-levelling range (°)
4
Operating range receiver (m)
50 / 100
Accuracy (mm/m)
0.3
Product range
Milwaukee Packout
Voltage (v)
12
Battery type
Li-ion
Laser projection
2x vertical, 1 horizontal
Number of batteries supplied
1
  • Brand MILWAUKEE
  • EAN 4058546362423
  • Supplier number MILWAUKEE 4933478960

Accessories

View more accessories (32)

Frequently asked questions about this product

Answered by specialists
What is included in the M12 3PLKIT-401P kit?
The kit contains the cross line laser, one M12 B4 4.0Ah battery, C12 C charger, Packout case, track clip, HI-VIST target plate, LLD50 receiver, LM360 bracket, and TRP120 tripod.
What is the maximum operating range of this green laser?
It offers a visible working range of up to 38 m. With the included LLD50 laser detector, the working range extends up to 100 m.
How many lines does the Milwaukee M12 3PL project?
It projects three 360° laser planes: one horizontal and two vertical lines, enabling simultaneous leveling, aligning, squaring, and layout tasks.
Is this laser compatible with other Milwaukee M12 batteries?
Yes, it is compatible with all Milwaukee M12 batteries. The included 4.0Ah battery pack provides over 15 hours of continuous runtime.
What tripod mount threads are available on this laser?
It features both 1/4" and 5/8" tripod threads, ensuring direct compatibility with the included TRP120 tripod as well as standard surveying tripods.
