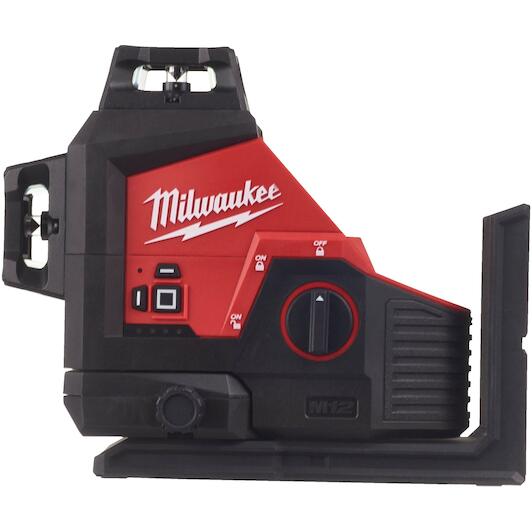

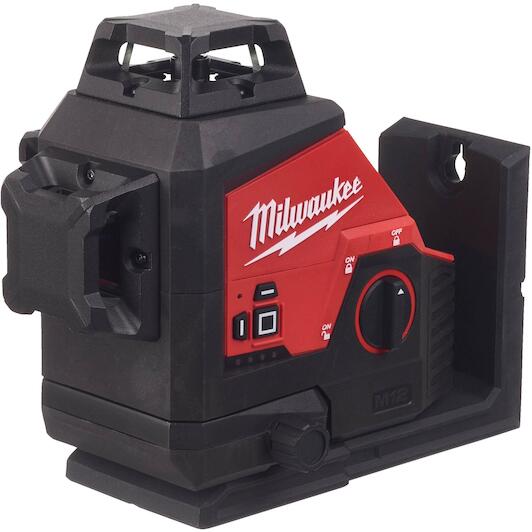

MILWAUKEE M12 3PL-0C three-dimensional cordless laser green with 3x360° laser circles in transport case (without battery and charger) - 4933478103

Supplier number: MILWAUKEE 4933478103 | EAN 4058546340360
Recommended Retail Price €717.86
551.88 tax incl.
€456.10 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Delivery by DHL

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Precise layout alignment with Milwaukee M12

Practical benefits

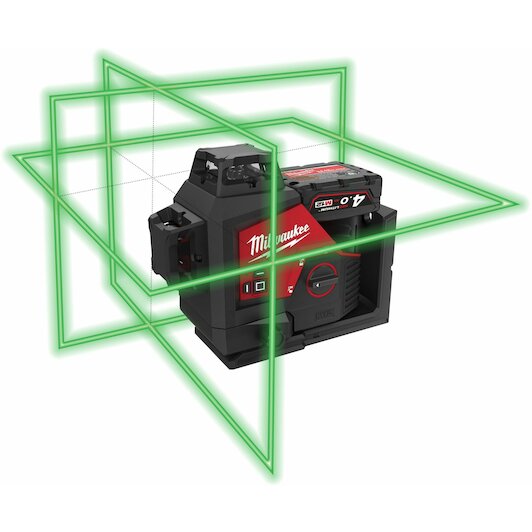

  • Three complete planes: One horizontal and two vertical 360° lines simplify squaring, leveling, and aligning across entire work areas simultaneously.

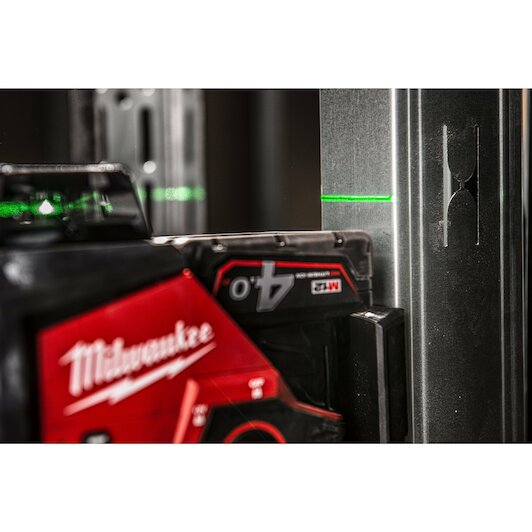

  • Crisp green visibility: High-intensity green diodes offer clear visibility up to 38 m, reaching 100 m when paired with a compatible detector.
  • Jobsite protection IP54: The rugged overmoulded housing resists splashes and construction dust, safeguarding internal mechanisms through tough daily use on site.

In a nutshell

The right choise for

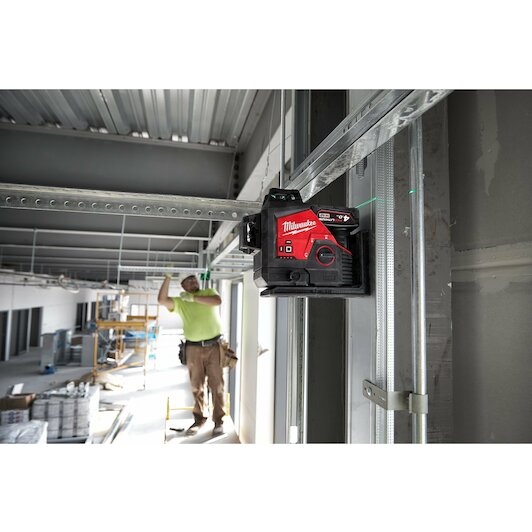

Set out entire rooms square and level in a single setup with the Milwaukee M12 3PL-0C line laser. One horizontal and two vertical 360° lines project across the whole space, letting you install partitions, ceilings, and tiles without moving the tool. Crisp green beams remain clearly visible up to 38 m, reaching 100 m with a detector.

The pendulum self-levels within 4° and maintains an accuracy of 0.3 mm/m. For tough sites, the rugged IP54 housing keeps internal components protected against dust and water splashes.

Mount the tool directly on tripods using the 1/4" and 5/8" threads. Weighing 1.1 kg, this bare unit travels securely in its kitbox with a clip and hivist target.

Recommended Combinations
With Milwaukee M12 3 Ah Battery

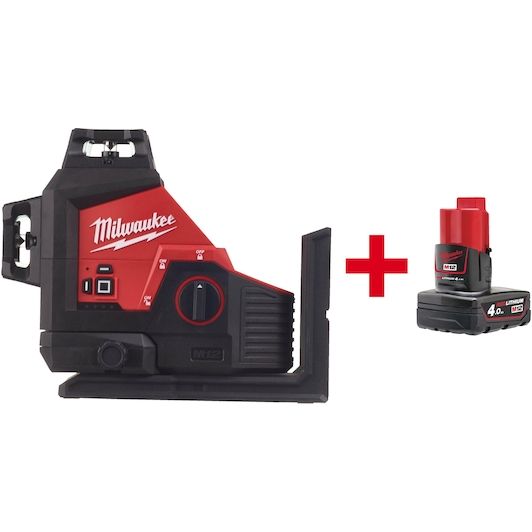

With Milwaukee M12 4 Ah Battery


€551.88
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 38 m
  • With tripod: No
  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Weight: 1,1 kg
  • Self-levelling range: 4,0000 °
  • Supplied in: Case
  • Rating (IP): IP54
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 100 m
  • Product Range: Milwaukee M12

Supplied as standard

  • No batteries supplied
  • No charger supplied
  • Supplied in: Kitbox
  • Track clip
  • HIVIST

Product description

  • M12 green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool
  • High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers
  • High intensity green beams provide a working range of 38 m and up to 100 m with a detector
  • Provides all-day run time of 15+ hours with an M12 B4 battery pack
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
  • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
  • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
  • Flexible battery system: works with all MILWAUKEE M12batteries

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
38 m
With tripod
No
Tripod thread
1/4"; 5/8"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Weight
1,1 kg
Self-levelling range
4,0000 °
Supplied in
Case
Rating (ip)
IP54
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Max. range with receiver
100 m
Laser classification
Class 2
Product range
Milwaukee M12
Operating range receiver (m)
50 / 100
Accuracy (mm/m)
0.3
Self-levelling time (sec)
3
Self-levelling range (°)
4
Max. working time with m12 b4 battery (hours)
15
Colour of laser
Green
Battery type
Li-ion
Voltage (v)
12
Laser projection
2x vertical, 1x horizontal
  • Brand MILWAUKEE
  • EAN 4058546340360
  • Supplier number MILWAUKEE 4933478103

Accessories

View more accessories (32)

Frequently asked questions about this product

Answered by specialists
Are a battery and charger included with this laser?
No, this model is supplied as a bare unit in a kitbox, without an M12 battery or charger.
What is the working range of the green laser lines?
The visible working range reaches 38 m. Using a compatible laser detector extends this range up to 100 m.
Which tripod mounts are available on this unit?
The integrated magnetic bracket is fitted with both 1/4" and 5/8" threads to suit standard tripods.
What is the leveling accuracy of this tool?
The tool self-levels within an angle of 4° and delivers an operational accuracy of 0.3 mm/m.
Is the laser protected against dust and moisture?
Yes, the housing has an IP54 rating to withstand site dust and water splashes.
