METABO

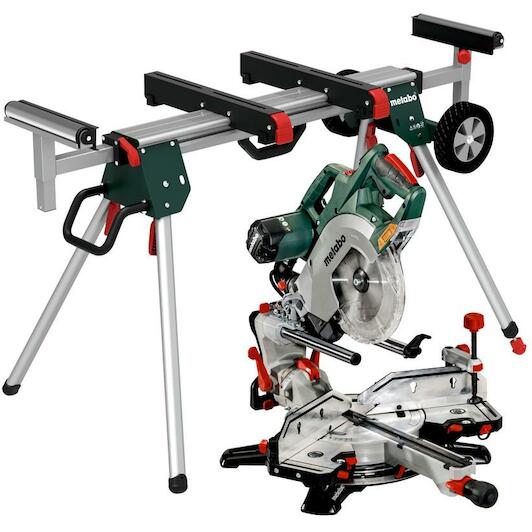

METABO KGSV 72 XACT SYM Set crosscut saw 216 mm 1500 W + KSU 251 base frame - 690972000

Recommended Retail Price €1,269.74
955.28 tax incl.
€789.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/08/2026
set

Is this mitre saw right for you?

Answer a few questions and see if this mitre saw is a perfect match for you.

Scope of delivery

  • Carbide saw blade (60 teeth)
  • 2 Table length extensions
  • Angle bevel
  • Material clamp
  • Tool for saw blade change
  • Cable winder
  • Machine stand KSU 251

Product description

  • Unique, patented combination of panel saw with sliding function and precise skirting saw with symmetrically adjustable stop system
  • Time-saving and accurate sawing of mitres without calculating and measuring thanks to simple angle transfer from bevel to stop system
  • Compactly designed sliding function with no space required behind the saw
  • Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
  • Double line laser for precise display of the cutting line left and right of the saw blade
  • Variable speed for an extended range of applications, e.g. for sawing aluminum profiles and plastics
  • With saw blade "multi cut" (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminium profiles
  • Compact light-weight with ergonomically designed carry handles, ideal for mobile use
  • Effective dust extraction via integrated dust scoop
  • Fast and precise setting of common angles using stop points
  • Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
  • Sliding high rear fence profiles for safe sawing
  • Depth guide for easy creation of grooves
  • Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
Key features according to our expert
  • Power: 1500 W
  • Cut line indicator: Double laser
  • Saw blade diameter: 216 mm
  • Adapter required for 35 mm vacuum cleaner hose: No
  • Dust extraction position: Behind the saw blade
  • Max. height (workpiece): 72 mm
  • Cable length: 3 m
  • Max. width (workpiece): 305 mm
  • Tiltable left/right: Yes
  • Engine brake: No
  • Slide function: Yes
  • Bore size: 30 mm
  • Weight: 47,71 kg
  • With stand: Yes
Specifications / All features
Power
1500 W
Cut line indicator
Double laser
Saw blade diameter
216 mm
Adapter required for 35 mm vacuum cleaner hose
No
Dust extraction position
Behind the saw blade
Max. height (workpiece)
72 mm
Cable length
3 m
Max. width (workpiece)
305 mm
Tiltable left/right
Yes
Engine brake
No
Slide function
Yes
Bore size
30 mm
Weight
47,71 kg
With stand
Yes
Cutting speed
25 - 70 m/s
Cutting capacity 45°/45°
215 x 42 mm
Saw blade inclination left/right
47 / 47 °
Zero load speed
2200 - 6300 rpm
Zero load speeds
2200 - 6300 rpm
Cutting capacity 90°/90°
305 x 72 mm
Max. cutting depth 90°/45°
72 / 42 mm
Dimensions
660 x 540 x 415 mm
Saw blade
216 mm
Power consumption s1 100%
1500 W
Left/right turntable adjustment
50 / 50 °
Max. cutting width 90°/45°
305 / 215 mm
Power consumption s6 20%
1800 W
