METABO

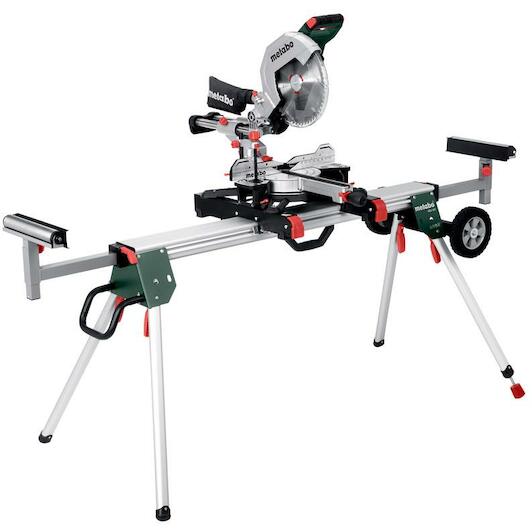

METABO KGS 305 M crosscut saw 305 mm 1600 W + KSU 401 base frame - 691216000

Recommended Retail Price €955.14
718.48 tax incl.
€593.78 excl. VAT (incl. all environmental contributions)
On order: delivered from 11/07/2026
set

Is this mitre saw right for you?

Answer a few questions and see if this mitre saw is a perfect match for you.

Scope of delivery

  • Saw blade "precision cut wood - classic", 305x30 Z56
  • 2 Table length extensions
  • Length Guide
  • Material clamp
  • Tool for saw blade change
  • Cable winder
  • Chip Collection Bag
  • Machine stand KSU 401

Product description

  • Largest crosscut and mitre saw of mobile M-class - light, precise, user-friendly
  • Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
  • Enormous cutting performance due to extremely powerful universal motor and large saw blade
  • Turntable with fast, precise setting of common angles using stop points
  • Saw blade inclination on both sides up to 47° for maximum flexibility
  • Robust die-cast aluminium design for the highest demands
  • Effective dust extraction via integrated dust scoop
  • Soft start for long service life of motor and drive
  • Extendable table width extensions, also removable to put underneath extremely long work pieces
  • Quick-action clamp for secure fixing of the work piece from the top or front
  • Depth guide for easy creation of grooves
  • All scales and operating elements are visible from the working position and can be operated intuitively
  • Ergonomic handle areas for carrying with one or two hands
Key features according to our expert
  • Power: 1600 W
  • Cut line indicator: LED shadow line
  • Saw blade diameter: 305 mm
  • Adapter required for 35 mm vacuum cleaner hose: No
  • Dust extraction position: Behind the saw blade
  • Max. height (workpiece): 110 mm
  • Cable length: 2 m
  • Max. width (workpiece): 305 mm
  • Tiltable left/right: Yes
  • Engine brake: Yes
  • Slide function: Yes
  • Bore size: 30 mm
  • Weight: 18,6 kg
  • With stand: Yes
Specifications / All features
Power
1600 W
Cut line indicator
LED shadow line
Saw blade diameter
305 mm
Adapter required for 35 mm vacuum cleaner hose
No
Dust extraction position
Behind the saw blade
Max. height (workpiece)
110 mm
Cable length
2 m
Max. width (workpiece)
305 mm
Tiltable left/right
Yes
Engine brake
Yes
Slide function
Yes
Bore size
30 mm
Weight
18,6 kg
With stand
Yes
Cutting speed
59 m/s
Cutting capacity 45°/45°
215 x 67 mm
Saw blade inclination left/right
47 / 47 °
Zero load speed
3700 rpm
Zero load speeds
3700 rpm
Cutting capacity 90°/90°
305 x 110 mm
Max. cutting depth 90°/45°
110 / 67 mm
Dimensions
780 x 500 x 657 mm
Support surface
345 x 770 mm
Saw blade
305 x 30 mm
Power consumption s1 100%
1600 W
Left/right turntable adjustment
50 / 60 °
Max. cutting width 90°/45°
305 / 215 mm
Power consumption s6 20%
2000 W
