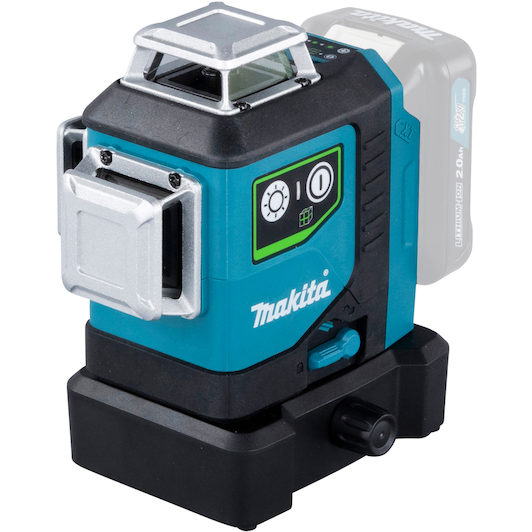

MAKITA SK700GDZ 12Vmax CXT cross line laser green in cordura bag (1H 360° + 2V 360°)

Supplier number: MAKITA SK700GDZ | EAN 0088381740739
Recommended Retail Price €761.54
584.88 tax incl.
€483.37 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Delivery by DHL

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Makita Deals

Take advantage of the Makita deals for a limited time and receive at least 1 free Makita item when purchasing this machine or set. Promotion valid until 31.03.2027 or while stocks last.

With this Makita deal, you receive the following item free of charge: 197658-5: Powerpack CXT BL1021B - Charger and two 2.0 Ah batteries in a Makpac case.

How does it work?

  • Order this Makita deal and receive the item mentioned above free of charge with your purchase.
  • The free item is delivered directly with your order. No additional registration is required.
  • The promotion is valid until 31.03.2027 or while stocks last.
  • Makita deals are recognisable by the promotion label on the product page. Click the label to view all available Makita deals.

Full spatial alignment with Makita

Practical benefits
  • Complete 360° line coverage: Three 360° laser lines project one horizontal and two vertical planes for fast references across entire rooms.
  • Crisp green beam visibility: The intense green laser remains clear up to 35 m, helping you mark fixing points without eye strain.
  • Dependable jobsite levelling accuracy: Built with IP54 protection and 4° self-levelling, this tool delivers consistent 0,2 mm/m precision through demanding conditions.

In a nutshell

The right choise for

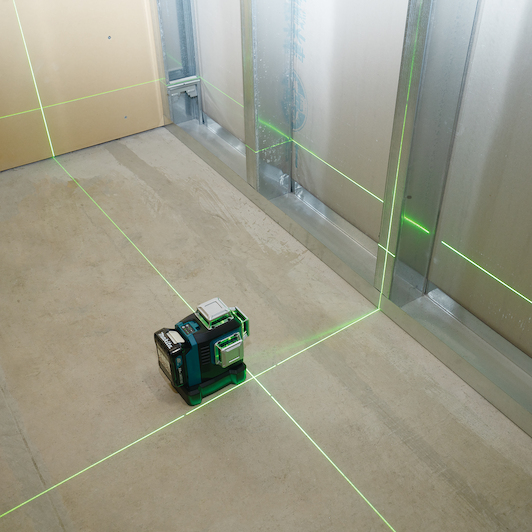

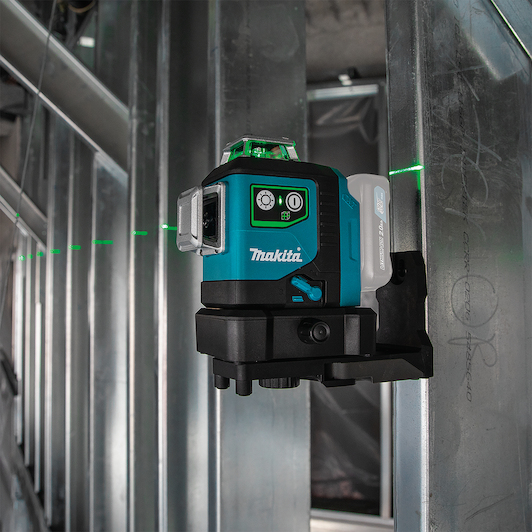

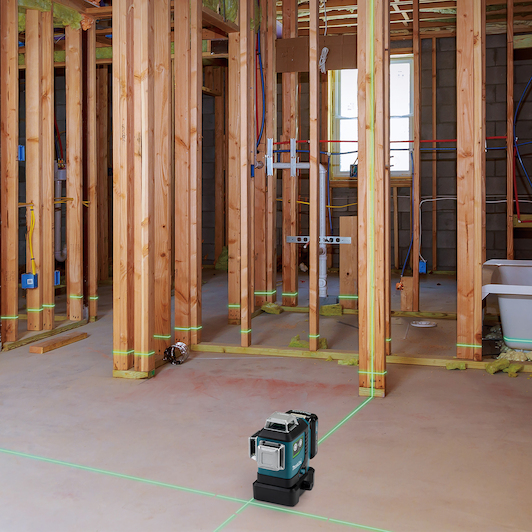

When laying out stud walls, suspended ceilings, or tiles, the Makita SK700GDZ projects three full 360° lines simultaneously. Its green beams stay crisp up to 35 m indoors, reaching 70 m with an optional receiver.

The self-levelling pendulum corrects inclinations within 4° to maintain 0,2 mm/m accuracy. You get instant 90° square references across floors, walls, and ceilings. Jobsite dust and spray remain sealed out thanks to the IP54 rated housing.

Powered by Makita 12VMAX cxt batteries, this bare tool weighs 0,78 kg for easy handling. Built-in 1/4" and 5/8" threads fit standard tripods. The laser includes a cordura carry bag, magnetic green target plate, and wall bracket adapter.



€584.88
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 35 m
  • With tripod: No
  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Weight: 0,78 kg
  • Self-levelling range: 4,0000 °
  • Supplied in: Bag
  • Rating (IP): IP54
  • Laser class: Class 2
  • Accuracy: 0,2 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 70 m
  • Product Range: Makita CXT 12V

Scope of delivery

  • 1 x LE00823195 Magnetic green target plate
  • 1 x LE00929103 Carrying bag
  • 1 x LE00929104 Adapter for wall bracket

Product description

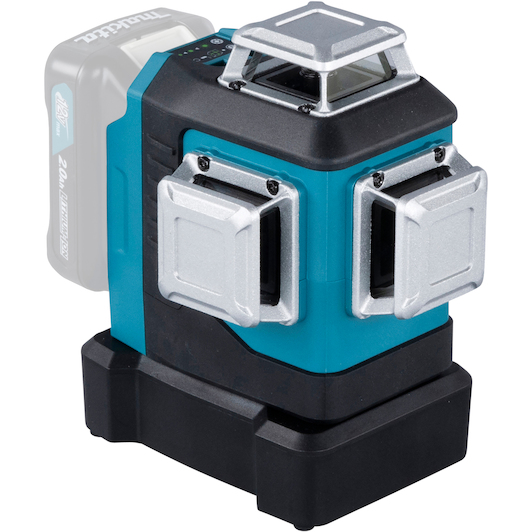

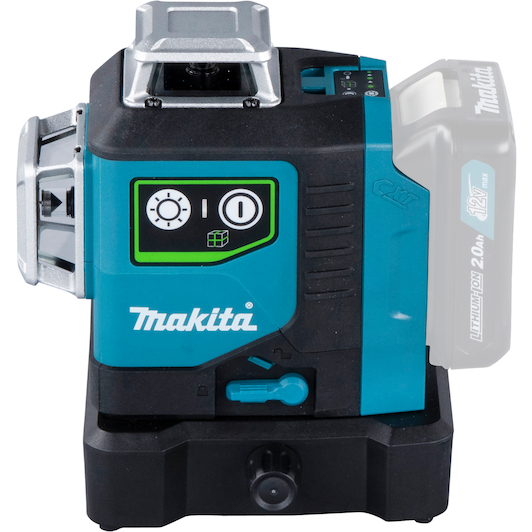

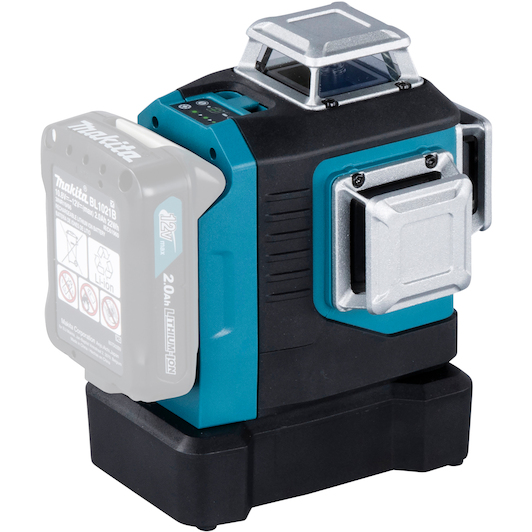

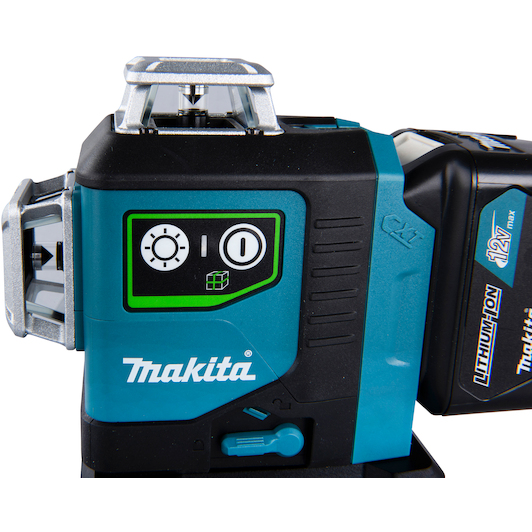

Battery-operated multi-line laser with green laser

A self-levelling multi-line laser with two green horizontal and one vertical lines that can be used separately or together. The laser is dust- and water-resistant with IP54 rating. Memory mode function: when the power is switched on, the laser beam will have the same mode as the last time before it was switched off. Also works with 8 x AAA (ADP09) batteries.

  • Compact and lightweight design
  • The eXtreme Protection Technology (XPT) ensures good dust and water resistance.

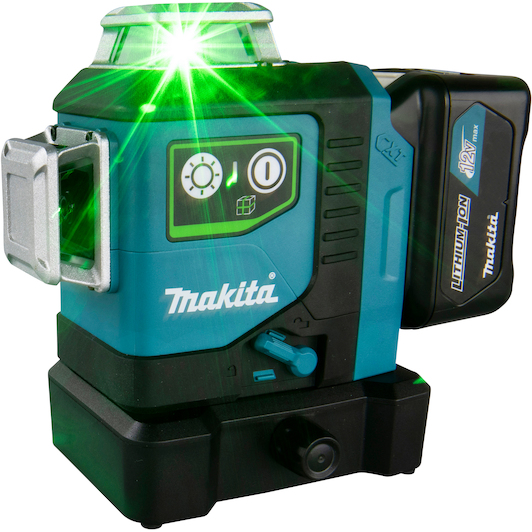

  • High-brightness green laser for increased visibility in a bright location
  • Battery protection system automatically switches off power when battery level is low
  • Even power-hungry green laser lines can continue to be projected during prolonged continuous use

Rotating base with eccentric rotation mechanism reduces set-up time Vertical laser lines can rotate up to 10° left and right around the defined plumb point (with a dial for fine adjustment). The eccentric rotation mechanism allows the laser housing to rotate without changing the position of the defined plumb point on the ground, allowing easy line positioning. High-brightness green laser for increased visibility in bright work locations or outdoors. Even green laser lines that consume a lot of energy can continue to be projected during long-term continuous use.

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
35 m
With tripod
No
Tripod thread
1/4"; 5/8"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Weight
0,78 kg
Self-levelling range
4,0000 °
Supplied in
Bag
Rating (ip)
IP54
Laser class
Class 2
Accuracy
0,2 mm/m
Colour (laser beams)
Green
Max. range with receiver
70 m
Weight with battery
0.99 - 1.2 kg
Levelling range
±4 º
Ip protection class
IP54
Average accuracy (2 s) of length measurement
± 2 mm / 10 m
Cxt battery
1
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Nominal battery voltage
12 V
Dimensions (l x w x h)
168 x 104 x 153 mm
Measuring range
35 (70) m
Operating temperature
-10 - 50 °C
Product range
Makita CXT 12V
  • Brand MAKITA
  • EAN 0088381740739
  • Supplier number MAKITA SK700GDZ

Accessories

Frequently asked questions about this product

Answered by specialists
Which battery platform powers this multi line laser?
It runs on Makita 12VMAX cxt Li-ion batteries. lxt 18V packs are not compatible.
What is the operating range of the green beams?
The visible working range is 35 m. Working with a separate laser receiver extends coverage up to 70 m.
Are a battery and charger included with the SK700GDZ?
No, this is a bare unit. The laser comes with a storage bag, magnetic target plate, and wall mount adapter.
What tripod mount threads does the unit have?
The base includes both 1/4" and 5/8" threads for mounting onto standard construction tripods.
How accurate is the self-levelling system?
It levels automatically within ±4° with an accuracy of 0.2 mm/m (±2 mm over 10 m).
